2024.04.30
x UiApp!gBS
00000000`e9e9e438 UiApp!gBS
dqs 0`e9e9e438 l1
00000000`e9e9e438 00000000`3ec531d8 DxeCore!mBootServices
dt DxeCore!mBootServices
+0x000 Hdr :
+0x018 RaiseTPL : Ptr 0
+0x020 RestoreTPL : Ptr 0
+0x028 AllocatePages : Ptr 0
+0x030 FreePages : Ptr 0
+0x038 GetMemoryMap : Ptr 0
+0x040 AllocatePool : Ptr 0
+0x048 FreePool : Ptr 0
+0x050 CreateEvent : Ptr 0
+0x058 SetTimer : Ptr 0
+0x060 WaitForEvent : Ptr 0
+0x068 SignalEvent : Ptr 0
+0x070 CloseEvent : Ptr 0
+0x078 CheckEvent : Ptr 0
+0x080 InstallProtocolInterface : Ptr 0
+0x088 ReinstallProtocolInterface : Ptr 0
+0x090 UninstallProtocolInterface : Ptr 0
+0x098 HandleProtocol : Ptr 0
+0x0a0 Reserved : Ptr64 Void
+0x0a8 RegisterProtocolNotify : Ptr 0
+0x0b0 LocateHandle : Ptr 0
+0x0b8 LocateDevicePath : Ptr 0
+0x0c0 InstallConfigurationTable : Ptr 0
+0x0c8 LoadImage : Ptr 0
+0x0d0 StartImage : Ptr 0
+0x0d8 Exit : Ptr 0
+0x0e0 UnloadImage : Ptr 0
+0x0e8 ExitBootServices : Ptr 0
+0x0f0 GetNextMonotonicCount : Ptr 0
+0x0f8 Stall : Ptr 0
+0x100 SetWatchdogTimer : Ptr 0
+0x108 ConnectController : Ptr 0
+0x110 DisconnectController : Ptr 0
+0x118 OpenProtocol : Ptr 0
+0x120 CloseProtocol : Ptr 0
+0x128 OpenProtocolInformation : Ptr 0
+0x130 ProtocolsPerHandle : Ptr 0
+0x138 LocateHandleBuffer : Ptr 0
+0x140 LocateProtocol : Ptr 0
+0x148 InstallMultipleProtocolInterfaces : Ptr 0
+0x150 UninstallMultipleProtocolInterfaces : Ptr 0
+0x158 CalculateCrc32 : Ptr 0
+0x160 CopyMem : Ptr 0
+0x168 SetMem : Ptr 0
+0x170 CreateEventEx : Ptr 0
dqs DxeCore!mBootServices l178/8
00000000`3ec531d8 56524553`544f4f42
00000000`3ec531e0 00000178`00020046
00000000`3ec531e8 00000000`a4418db8
00000000`3ec531f0 00000000`3ec3b1f4 DxeCore!CoreRaiseTpl
00000000`3ec531f8 00000000`3ec3b2c8 DxeCore!CoreRestoreTpl
00000000`3ec53200 00000000`3ec3a1f8 DxeCore!CoreAllocatePages
00000000`3ec53208 00000000`3ec3a2d0 DxeCore!CoreFreePages
00000000`3ec53210 00000000`3ec3ab40 DxeCore!CoreGetMemoryMap
00000000`3ec53218 00000000`3ec3a128 DxeCore!CoreAllocatePool
00000000`3ec53220 00000000`3ec3a190 DxeCore!CoreFreePool
00000000`3ec53228 00000000`3ec3c04c DxeCore!CoreCreateEvent
00000000`3ec53230 00000000`3ec368d4 DxeCore!CoreSetTimer
00000000`3ec53238 00000000`3ec369e0 DxeCore!CoreWaitForEvent
00000000`3ec53240 00000000`3ec36660 DxeCore!CoreSignalEvent
00000000`3ec53248 00000000`3ec3b520 DxeCore!CoreCloseEvent
00000000`3ec53250 00000000`3ec3618c DxeCore!CoreCheckEvent
00000000`3ec53258 00000000`3ec30720 DxeCore!CoreInstallProtocolInterface
00000000`3ec53260
00000000`3ec2ef98 DxeCore!CoreReinstallProtocolInterface
00000000`3ec53268 00000000`3ec2f094 DxeCore!CoreUninstallProtocolInterface
00000000`3ec53270 00000000`3ec2ccd8 DxeCore!CoreHandleProtocol
00000000`3ec53278 00000000`00000000
00000000`3ec53280 00000000`3ec2bea8 DxeCore!CoreRegisterProtocolNotify
00000000`3ec53288 00000000`3ec2bf6c DxeCore!CoreLocateHandle
00000000`3ec53290 00000000`3ec2f194 DxeCore!CoreLocateDevicePath
00000000`3ec53298 00000000`3ec2a2b4 DxeCore!CoreInstallConfigurationTable
00000000`3ec532a0 00000000`3ec29d18 DxeCore!CoreLoadImage
00000000`3ec532a8 00000000`3ec2fe6c DxeCore!CoreStartImage
00000000`3ec532b0 00000000`3ec2fd3c DxeCore!CoreExit
00000000`3ec532b8 00000000`3ec3041c DxeCore!CoreUnloadImage
00000000`3ec532c0 00000000`3ec2a05c DxeCore!CoreExitBootServices
00000000`3ec532c8 00000000`eaef0000 EmbeddedMonotonicCounter!gST+0xffffffff`fffeffb8
00000000`3ec532d0 00000000`3ec29dcc DxeCore!CoreStall
00000000`3ec532d8 00000000`3ec29ea0 DxeCore!CoreSetWatchdogTimer
00000000`3ec532e0 00000000`3ec2e058 DxeCore!CoreConnectController
00000000`3ec532e8 00000000`3ec2e80c DxeCore!CoreDisconnectController
00000000`3ec532f0 00000000`3ec2c950 DxeCore!CoreOpenProtocol
00000000`3ec532f8 00000000`3ec2f3d0 DxeCore!CoreCloseProtocol
00000000`3ec53300 00000000`3ec2f524 DxeCore!CoreOpenProtocolInformation
00000000`3ec53308 00000000`3ec2f6ac DxeCore!CoreProtocolsPerHandle
00000000`3ec53310 00000000`3ec2bfd0 DxeCore!CoreLocateHandleBuffer
00000000`3ec53318 00000000`3ec2c20c DxeCore!CoreLocateProtocol
00000000`3ec53320 00000000`3ec30728 DxeCore!CoreInstallMultipleProtocolInterfaces
00000000`3ec53328 00000000`3ec30990 DxeCore!CoreUninstallMultipleProtocolInterfaces
00000000`3ec53330 00000000`eaf8110c RuntimeDxe!gST+0xffffffff`ffff0fdc
00000000`3ec53338 00000000`3ec36d1c DxeCore!CopyMem
00000000`3ec53340 00000000`3ec36cb8 DxeCore!SetMem
00000000`3ec53348 00000000`3ec3c020 DxeCore!CoreCreateEventEx
x UiApp!gBS
00000000`e9e9e438 UiApp!gBS
dqs 0`e9e9e438 l1
00000000`e9e9e438 00000000`3ec531d8 DxeCore!mBootServices
x UiApp!gST
00000000`e9e9e418 UiApp!gST
dqs 0`e9e9e418 l1
00000000`e9e9e418 00000000`effd0018
dt EFI_SYSTEM_TABLE
+0x000 Hdr :
+0x018 FirmwareVendor : Ptr 0 Uint2B
+0x020 FirmwareRevision : Uint4B
+0x028 ConsoleInHandle : Ptr64 Void
+0x030 ConIn : Ptr 0 _EFI_SIMPLE_TEXT_INPUT_PROTOCOL
+0x038 ConsoleOutHandle : Ptr64 Void
+0x040 ConOut : Ptr 0 _EFI_SIMPLE_TEXT_OUTPUT_PROTOCOL
+0x048 StandardErrorHandle : Ptr64 Void
+0x050 StdErr : Ptr 0 _EFI_SIMPLE_TEXT_OUTPUT_PROTOCOL
+0x058 RuntimeServices : Ptr 0
+0x060 BootServices : Ptr 0
+0x068 NumberOfTableEntries : Uint8B
+0x070 ConfigurationTable : Ptr 0
dt -r EFI_SYSTEM_TABLE
+0x000 Hdr :
+0x000 Signature : Uint8B
+0x008 Revision : Uint4B
+0x00c HeaderSize : Uint4B
+0x010 CRC32 : Uint4B
+0x014 Reserved : Uint4B
+0x018 FirmwareVendor : Ptr 0 Uint2B
+0x020 FirmwareRevision : Uint4B
+0x028 ConsoleInHandle : Ptr64 Void
+0x030 ConIn : Ptr 0
+0x000 Reset : Ptr 0
+0x008 ReadKeyStroke : Ptr 0
+0x010 WaitForKey : Ptr64 Void
+0x038 ConsoleOutHandle : Ptr64 Void
+0x040 ConOut : Ptr 0
+0x000 Reset : Ptr 0
+0x008 OutputString : Ptr 0
+0x010 TestString : Ptr 0
+0x018 QueryMode : Ptr 0
+0x020 SetMode : Ptr 0
+0x028 SetAttribute : Ptr 0
+0x030 ClearScreen : Ptr 0
+0x038 SetCursorPosition : Ptr 0
+0x040 EnableCursor : Ptr 0
+0x048 Mode : Ptr 0
+0x000 MaxMode : Int4B
+0x004 Mode : Int4B
+0x008 Attribute : Int4B
+0x00c CursorColumn : Int4B
+0x010 CursorRow : Int4B
+0x014 CursorVisible : UChar
+0x048 StandardErrorHandle : Ptr64 Void
+0x050 StdErr : Ptr 0
+0x000 Reset : Ptr 0
+0x008 OutputString : Ptr 0
+0x010 TestString : Ptr 0
+0x018 QueryMode : Ptr 0
+0x020 SetMode : Ptr 0
+0x028 SetAttribute : Ptr 0
+0x030 ClearScreen : Ptr 0
+0x038 SetCursorPosition : Ptr 0
+0x040 EnableCursor : Ptr 0
+0x048 Mode : Ptr 0
+0x000 MaxMode : Int4B
+0x004 Mode : Int4B
+0x008 Attribute : Int4B
+0x00c CursorColumn : Int4B
+0x010 CursorRow : Int4B
+0x014 CursorVisible : UChar
+0x058 RuntimeServices : Ptr 0
+0x000 Hdr :
+0x000 Signature : Uint8B
+0x008 Revision : Uint4B
+0x00c HeaderSize : Uint4B
+0x010 CRC32 : Uint4B
+0x014 Reserved : Uint4B
+0x018 GetTime : Ptr 0
+0x020 SetTime : Ptr 0
+0x028 GetWakeupTime : Ptr 0
+0x030 SetWakeupTime : Ptr 0
+0x038 SetVirtualAddressMap : Ptr 0
+0x040 ConvertPointer : Ptr 0
+0x048 GetVariable : Ptr 0
+0x050 GetNextVariableName : Ptr 0
+0x058 SetVariable : Ptr 0
+0x060 GetNextHighMonotonicCount : Ptr 0
+0x068 ResetSystem : Ptr 0
+0x070 UpdateCapsule : Ptr 0
+0x078 QueryCapsuleCapabilities : Ptr 0
+0x080 QueryVariableInfo : Ptr 0
+0x060 BootServices : Ptr 0
+0x000 Hdr :
+0x000 Signature : Uint8B
+0x008 Revision : Uint4B
+0x00c HeaderSize : Uint4B
+0x010 CRC32 : Uint4B
+0x014 Reserved : Uint4B
+0x018 RaiseTPL : Ptr 0
+0x020 RestoreTPL : Ptr 0
+0x028 AllocatePages : Ptr 0
+0x030 FreePages : Ptr 0
+0x038 GetMemoryMap : Ptr 0
+0x040 AllocatePool : Ptr 0
+0x048 FreePool : Ptr 0
+0x050 CreateEvent : Ptr 0
+0x058 SetTimer : Ptr 0
+0x060 WaitForEvent : Ptr 0
+0x068 SignalEvent : Ptr 0
+0x070 CloseEvent : Ptr 0
+0x078 CheckEvent : Ptr 0
+0x080 InstallProtocolInterface : Ptr 0
+0x088 ReinstallProtocolInterface : Ptr 0
+0x090 UninstallProtocolInterface : Ptr 0
+0x098 HandleProtocol : Ptr 0
+0x0a0 Reserved : Ptr64 Void
+0x0a8 RegisterProtocolNotify : Ptr 0
+0x0b0 LocateHandle : Ptr 0
+0x0b8 LocateDevicePath : Ptr 0
+0x0c0 InstallConfigurationTable : Ptr 0
+0x0c8 LoadImage : Ptr 0
+0x0d0 StartImage : Ptr 0
+0x0d8 Exit : Ptr 0
+0x0e0 UnloadImage : Ptr 0
+0x0e8 ExitBootServices : Ptr 0
+0x0f0 GetNextMonotonicCount : Ptr 0
+0x0f8 Stall : Ptr 0
+0x100 SetWatchdogTimer : Ptr 0
+0x108 ConnectController : Ptr 0
+0x110 DisconnectController : Ptr 0
+0x118 OpenProtocol : Ptr 0
+0x120 CloseProtocol : Ptr 0
+0x128 OpenProtocolInformation : Ptr 0
+0x130 ProtocolsPerHandle : Ptr 0
+0x138 LocateHandleBuffer : Ptr 0
+0x140 LocateProtocol : Ptr 0
+0x148 InstallMultipleProtocolInterfaces : Ptr 0
+0x150 UninstallMultipleProtocolInterfaces : Ptr 0
+0x158 CalculateCrc32 : Ptr 0
+0x160 CopyMem : Ptr 0
+0x168 SetMem : Ptr 0
+0x170 CreateEventEx : Ptr 0
+0x068 NumberOfTableEntries : Uint8B
+0x070 ConfigurationTable : Ptr 0
+0x000 VendorGuid :
+0x000 Data1 : Uint4B
+0x004 Data2 : Uint2B
+0x006 Data3 : Uint2B
+0x008 Data4 : [8]UINT8[] UChar
+0x010 VendorTable : Ptr64 Void
dt -r EFI_SYSTEM_TABLE 0`effd0018
+0x000 Hdr :
+0x000 Signature : 0x54535953`20494249
+0x008 Revision : 0x20046
+0x00c HeaderSize : 0x78
+0x010 CRC32 : 0xfc99489d
+0x014 Reserved : 0
+0x018 FirmwareVendor : (null)
+0x020 FirmwareRevision : 0x10000
+0x028 ConsoleInHandle : 0x00000000`ef22a918
+0x030 ConIn : (null)
+0x038 ConsoleOutHandle : 0x00000000`ef229918
+0x040 ConOut : (null)
+0x048 StandardErrorHandle : 0x00000000`ef228e98
+0x050 StdErr : (null)
+0x058 RuntimeServices : (null)
+0x060 BootServices : (null)
+0x068 NumberOfTableEntries : 0xb
+0x070 ConfigurationTable : (null)
dqs 0`effd0018 l78/8
00000000`effd0018 54535953`20494249
00000000`effd0020 00000078`00020046
00000000`effd0028 00000000`fc99489d
00000000`effd0030 00000000`effde318
00000000`effd0038 00000000`00010000
00000000`effd0040 00000000`ef22a918
00000000`effd0048 00000000`eaa0e400 ConSplitterDxe!mConIn+0x10
00000000`effd0050 00000000`ef229918
00000000`effd0058 00000000`eaa0e2b0 ConSplitterDxe!mConOut+0x10
00000000`effd0060 00000000`ef228e98
00000000`effd0068 00000000`eaa0e190 ConSplitterDxe!mStdErr+0x10
00000000`effd0070 00000000`effdff18
00000000`effd0078 00000000`3ec531d8 DxeCore!mBootServices
00000000`effd0080 00000000`0000000b
00000000`effd0088 00000000`effdfb18
da 0`effd0018
00000000`effd0018 "IBI SYSTF"
x UiApp!gRT
00000000`e9e9e3a8 UiApp!gRT
dqs 0`e9e9e3a8 l1
00000000`e9e9e3a8 00000000`effdff18
dt EFI_RUNTIME_SERVICES
+0x000 Hdr :
+0x018 GetTime : Ptr 0
+0x020 SetTime : Ptr 0
+0x028 GetWakeupTime : Ptr 0
+0x030 SetWakeupTime : Ptr 0
+0x038 SetVirtualAddressMap : Ptr 0
+0x040 ConvertPointer : Ptr 0
+0x048 GetVariable : Ptr 0
+0x050 GetNextVariableName : Ptr 0
+0x058 SetVariable : Ptr 0
+0x060 GetNextHighMonotonicCount : Ptr 0
+0x068 ResetSystem : Ptr 0
+0x070 UpdateCapsule : Ptr 0
+0x078 QueryCapsuleCapabilities : Ptr 0
+0x080 QueryVariableInfo : Ptr 0
dt -r EFI_RUNTIME_SERVICES
+0x000 Hdr :
+0x000 Signature : Uint8B
+0x008 Revision : Uint4B
+0x00c HeaderSize : Uint4B
+0x010 CRC32 : Uint4B
+0x014 Reserved : Uint4B
+0x018 GetTime : Ptr 0
+0x020 SetTime : Ptr 0
+0x028 GetWakeupTime : Ptr 0
+0x030 SetWakeupTime : Ptr 0
+0x038 SetVirtualAddressMap : Ptr 0
+0x040 ConvertPointer : Ptr 0
+0x048 GetVariable : Ptr 0
+0x050 GetNextVariableName : Ptr 0
+0x058 SetVariable : Ptr 0
+0x060 GetNextHighMonotonicCount : Ptr 0
+0x068 ResetSystem : Ptr 0
+0x070 UpdateCapsule : Ptr 0
+0x078 QueryCapsuleCapabilities : Ptr 0
+0x080 QueryVariableInfo : Ptr 0
dt -r EFI_RUNTIME_SERVICES 0`effdff18
+0x000 Hdr :
+0x000 Signature : 0x56524553`544e5552
+0x008 Revision : 0x20046
+0x00c HeaderSize : 0x88
+0x010 CRC32 : 0x1925f001
+0x014 Reserved : 0
+0x018 GetTime : (null)
+0x020 SetTime : (null)
+0x028 GetWakeupTime : (null)
+0x030 SetWakeupTime : (null)
+0x038 SetVirtualAddressMap : (null)
+0x040 ConvertPointer : (null)
+0x048 GetVariable : (null)
+0x050 GetNextVariableName : (null)
+0x058 SetVariable : (null)
+0x060 GetNextHighMonotonicCount : (null)
+0x068 ResetSystem : (null)
+0x070 UpdateCapsule : (null)
+0x078 QueryCapsuleCapabilities : (null)
+0x080 QueryVariableInfo : (null)
dqs 0`effdff18 l88/8
00000000`effdff18 56524553`544e5552
00000000`effdff20 00000088`00020046
00000000`effdff28 00000000`1925f001
00000000`effdff30 00000000`eaa21740 RealTimeClock!gST+0xffffffff`ffff1678
00000000`effdff38 00000000`eaa21514 RealTimeClock!gST+0xffffffff`ffff144c
00000000`effdff40 00000000`eaa20024 RealTimeClock!gST+0xffffffff`fffeff5c
00000000`effdff48 00000000`eaa20060 RealTimeClock!gST+0xffffffff`fffeff98
00000000`effdff50 00000000`eaf818d4 RuntimeDxe!gST+0xffffffff`ffff17a4
00000000`effdff58 00000000`eaf80008 RuntimeDxe!gST+0xffffffff`fffefed8
00000000`effdff60 00000000`eacc509c VariableRuntimeDxe!gST+0xffffffff`ffff4be4
00000000`effdff68 00000000`eacc1894 VariableRuntimeDxe!gST+0xffffffff`ffff13dc
00000000`effdff70 00000000`eacc723c VariableRuntimeDxe!gST+0xffffffff`ffff6d84
00000000`effdff78 00000000`eaef01d0 EmbeddedMonotonicCounter!gST+0xffffffff`ffff0188
00000000`effdff80 00000000`eac01700 Reset!gST+0xffffffff`ffff1698
00000000`effdff88 00000000`eaac1434 CapsuleRuntimeDxe!gST+0xffffffff`ffff13bc
00000000`effdff90 00000000`eaac1334 CapsuleRuntimeDxe!gST+0xffffffff`ffff12bc
00000000`effdff98 00000000`eacc11c4 VariableRuntimeDxe!gST+0xffffffff`ffff0d0c
dqs 0`eaa21740 l1
00000000`eaa21740 a9047bfd`d10183ff
u 0`eaa21740
RealTimeClock!gST+ffffffff`ffff1678:
eaa21740 d10183ff sub sp, sp, #0x60
eaa21744 a9047bfd stp x29, x30, [sp, #0x40]
eaa21748 910103fd add x29, sp, #0x40
eaa2174c a90553f3 stp x19, x20, [sp, #0x50]
eaa21750 aa0003f3 mov x19, x0
eaa21754 aa0103f4 mov x20, x1
eaa21758 f0000060 adrp x0, #0xeaa30000
eaa2175c f9400001 ldr x1, [x0]
da 0`effdff18
00000000`effdff18 "RUNTSERVF"

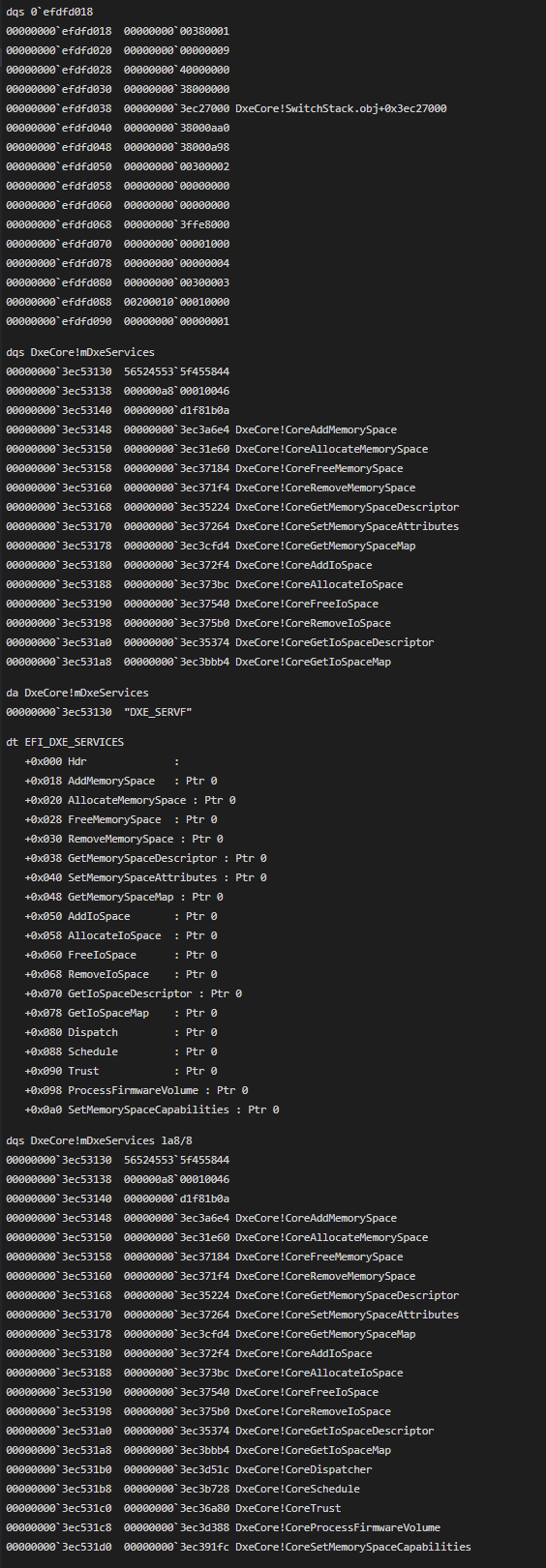

dt DxeCore!mDxeServices
+0x000 Hdr :
+0x018 AddMemorySpace : Ptr 0
+0x020 AllocateMemorySpace : Ptr 0
+0x028 FreeMemorySpace : Ptr 0
+0x030 RemoveMemorySpace : Ptr 0
+0x038 GetMemorySpaceDescriptor : Ptr 0
+0x040 SetMemorySpaceAttributes : Ptr 0
+0x048 GetMemorySpaceMap : Ptr 0
+0x050 AddIoSpace : Ptr 0
+0x058 AllocateIoSpace : Ptr 0
+0x060 FreeIoSpace : Ptr 0
+0x068 RemoveIoSpace : Ptr 0
+0x070 GetIoSpaceDescriptor : Ptr 0
+0x078 GetIoSpaceMap : Ptr 0
+0x080 Dispatch : Ptr 0
+0x088 Schedule : Ptr 0
+0x090 Trust : Ptr 0
+0x098 ProcessFirmwareVolume : Ptr 0
+0x0a0 SetMemorySpaceCapabilities : Ptr 0
x DxeCore!mDxeServices
00000000`3ec53130 DxeCore!mDxeServices
dqs 0`3ec53130 la8/8
00000000`3ec53130 56524553`5f455844
00000000`3ec53138 000000a8`00010046
00000000`3ec53140 00000000`d1f81b0a
00000000`3ec53148 00000000`3ec3a6e4 DxeCore!CoreAddMemorySpace
00000000`3ec53150 00000000`3ec31e60 DxeCore!CoreAllocateMemorySpace
00000000`3ec53158 00000000`3ec37184 DxeCore!CoreFreeMemorySpace
00000000`3ec53160 00000000`3ec371f4 DxeCore!CoreRemoveMemorySpace
00000000`3ec53168 00000000`3ec35224 DxeCore!CoreGetMemorySpaceDescriptor
00000000`3ec53170 00000000`3ec37264 DxeCore!CoreSetMemorySpaceAttributes
00000000`3ec53178 00000000`3ec3cfd4 DxeCore!CoreGetMemorySpaceMap
00000000`3ec53180 00000000`3ec372f4 DxeCore!CoreAddIoSpace
00000000`3ec53188 00000000`3ec373bc DxeCore!CoreAllocateIoSpace
00000000`3ec53190 00000000`3ec37540 DxeCore!CoreFreeIoSpace
00000000`3ec53198 00000000`3ec375b0 DxeCore!CoreRemoveIoSpace
00000000`3ec531a0 00000000`3ec35374 DxeCore!CoreGetIoSpaceDescriptor
00000000`3ec531a8 00000000`3ec3bbb4 DxeCore!CoreGetIoSpaceMap
00000000`3ec531b0 00000000`3ec3d51c DxeCore!CoreDispatcher
00000000`3ec531b8 00000000`3ec3b728 DxeCore!CoreSchedule
00000000`3ec531c0 00000000`3ec36a80 DxeCore!CoreTrust
00000000`3ec531c8 00000000`3ec3d388 DxeCore!CoreProcessFirmwareVolume
00000000`3ec531d0 00000000`3ec391fc DxeCore!CoreSetMemorySpaceCapabilities
da 0`3ec53130
00000000`3ec53130 "DXE_SERVF"
x UiApp!gImageHandle
00000000`e9e9e3f0 UiApp!gImageHandle
dqs 0`e9e9e3f0 l1
00000000`e9e9e3f0 00000000`eebfe998
db 0`eebfe998
00000000`eebfe998 68 6e 64 6c 00 00 00 00-20 62 be ee 00 00 00 00 hndl.... b......
00000000`eebfe9a8 20 6f bf ee 00 00 00 00-20 ea bf ee 00 00 00 00 o...... .......
00000000`eebfe9b8 20 48 bf ee 00 00 00 00-00 00 00 00 00 00 00 00 H..............
00000000`eebfe9c8 20 01 00 00 00 00 00 00-70 74 61 6c af af af af .......ptal....
00000000`eebfe9d8 60 00 00 00 00 00 00 00-af af af af af af af af `...............
00000000`eebfe9e8 af af af af af af af af-af af af af af af af af ................
00000000`eebfe9f8 af af af af af af af af-70 68 64 30 00 00 00 00 ........phd0....
00000000`eebfea08 04 00 00 00 00 00 00 00-80 00 00 00 00 00 00 00 ................
dt -b POOL_TAIL 0`eebfe9d0
+0x000 Signature : 0x6c617470
+0x004 Reserved : 0xafafafaf
+0x008 Size : 0x60
da 0`eebfe9d0
00000000`eebfe9d0 "ptal....`"
dt -b POOL_HEAD 0`eebfea00
+0x000 Signature : 0x30646870
+0x004 Reserved : 0
+0x008 Type : 4 ( EfiBootServicesData )
+0x010 Size : 0x80
+0x018 Data :
[00] 112 'p'
da 0`eebfea00
00000000`eebfea00 "phd0"
da 0`eebfea00+18
00000000`eebfea18 "pifc"
dt -b PROTOCOL_INTERFACE 0`eebfea00+18
+0x000 Signature : 0x63666970
+0x008 Link : [ 00000000`eebf4820 - eebfe9b0 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x018 Handle : (null)
+0x020 ByProtocol : [ 00000000`eeb43538 - ef19b8b8 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x030 Protocol : (null)
+0x038 Interface : 0x00000000`eebf4998
+0x040 OpenList : [ 00000000`eebfea58 - eebfea58 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x050 OpenListCount : 0
作者：朱博渊 创建时间：2024-04-30 22:32
最后编辑：朱博渊 更新时间：2024-12-20 17:01
最后编辑：朱博渊 更新时间：2024-12-20 17:01
