IHANDLE, PROTOCOL_INTERFACE, PROTOCOL_ENTRY, PROTOCOL_NOTIFY and IEVENT
2024.05.03
一边阅读源码，一边借助NDB观察，以弄清楚三者之间的关系：

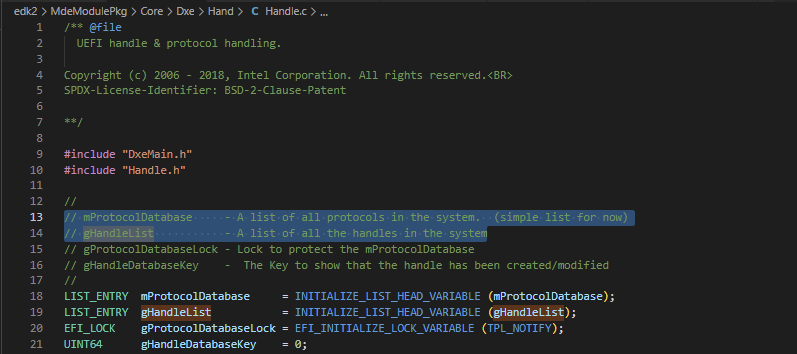

mProtocolDatabase与gHandleList是总纲：
上NDB:

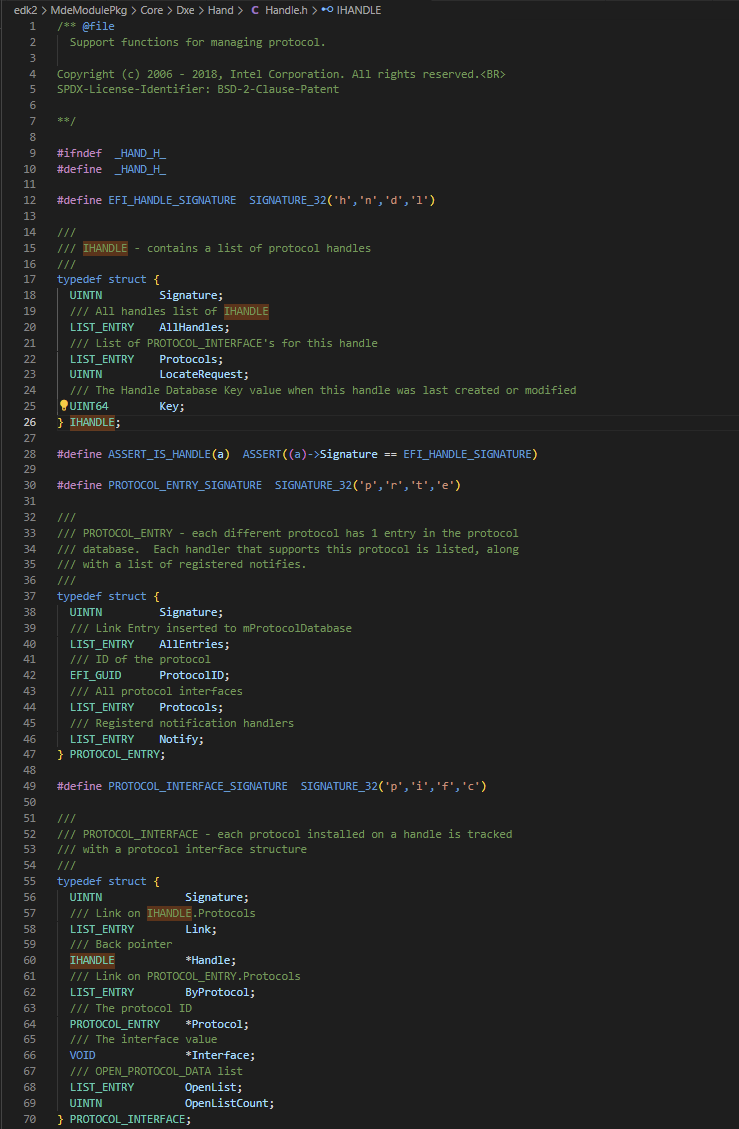

DxeCore!gHanleList->IHANDLE->PROTOCOL_INTERFACE->PROTOCOL_ENTRY
DxeCore!mProtocolDatabase->PROTOCOL_ENTRY->PROTOCOL_INTERFACE->IHANDLE
PROTOCOL_INTERFACE中的interface 到底指向什么？具体的某个PROTOCOL结构体。
这样用NDB操作过一遍，再来看源代码，就清清楚楚了：
x DxeCore!gHandleList
00000000`3ec53488 DxeCore!gHandleList
dt -b IHANDLE 00000000`3ec53488-8
+0x000 Signature : 0x1`201246dc
+0x008 AllHandles : [ 00000000`efdfffa0 - eeb43920 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x018 Protocols : [ 00000000`44505049 - a ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x028 LocateRequest : 1
+0x030 Key : 0xef325ca0
dq 00000000`3ec53488 l1
00000000`3ec53488 00000000`efdfffa0
dt -b IHANDLE 00000000`efdfffa0-8
+0x000 Signature : 0x6c646e68
+0x008 AllHandles : [ 00000000`efdff1a0 - 3ec53488 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x018 Protocols : [ 00000000`efdfff20 - efdfff20 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x028 LocateRequest : 0x18d
+0x030 Key : 1
da 00000000`efdfffa0-8
00000000`efdfff98 "hndl"
x DxeCore!gHandleList
00000000`3ec53488 DxeCore!gHandleList
dq 00000000`3ec53488 l1
00000000`3ec53488 00000000`efdfffa0
dt -b IHANDLE 00000000`efdfffa0-8
+0x000 Signature : 0x6c646e68
+0x008 AllHandles : [ 00000000`efdff1a0 - 3ec53488 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x018 Protocols : [ 00000000`efdfff20 - efdfff20 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x028 LocateRequest : 0x18d
+0x030 Key : 1
da 00000000`efdfffa0-8
00000000`efdfff98 "hndl"
[ndb]!echo "All IHANDLEs can be accessed through AllHandles list."
All IHANDLEs can be accessed through AllHandles list.
[ndb]!echo "PROTOCOL_INTERFACE's for this handle can be accessed through Protocols list."
PROTOCOL_INTERFACE's for this handle can be accessed through Protocols list.
dt -b PROTOCOL_INTERFACE 00000000`efdfff20-8
+0x000 Signature : 0x63666970
+0x008 Link : [ 00000000`efdfffb0 - efdfffb0 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x018 Handle : (null)
+0x020 ByProtocol : [ 00000000`ef358238 - efdff040 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x030 Protocol : (null)
+0x038 Interface : 0x00000000`3ec53900
+0x040 OpenList : [ 00000000`ef358b20 - ef358b20 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x050 OpenListCount : 1
da 00000000`efdfff20-8
00000000`efdfff18 "pifc"
[ndb]!echo " PROTOCOL_ENTRY *Protocol;"
PROTOCOL_ENTRY *Protocol;
dqs 00000000`efdfff20-8+30 l1
00000000`efdfff48 00000000`efdff018
dt -b PROTOCOL_ENTRY 00000000`efdff018
+0x000 Signature : 0x65747270
+0x008 AllEntries : [ 00000000`efdffea0 - 3ec53380 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x018 ProtocolID :
+0x000 Data1 : 0x5b1b31a1
+0x004 Data2 : 0x9562
+0x006 Data3 : 0x11d2
+0x008 Data4 :
[00] 0x8e ''
[01] 0x3f '?'
[02] 0 ''
[03] 0xa0 ''
[04] 0xc9 ''
[05] 0x69 'i'
[06] 0x72 'r'
[07] 0x3b ';'
+0x028 Protocols : [ 00000000`efdfff38 - eeb430b8 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x038 Notify : [ 00000000`efdff050 - efdff050 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
da 00000000`efdff018
00000000`efdff018 "prte"
[ndb]!echo "/// Link Entry inserted to mProtocolDatabase -> AllEntries"
/// Link Entry inserted to mProtocolDatabase -> AllEntries
x DxeCore!mProtocolDatabase
00000000`3ec53380 DxeCore!mProtocolDatabase
dq 00000000`3ec53380
00000000`3ec53380 00000000`efdff020 00000000`eeb38e20
00000000`3ec53390 00000000`00000010 00000000`00000004
00000000`3ec533a0 00000000`00000001 4a828a15`3bc1b285
00000000`3ec533b0 6532fb13`7d4dbfaa 4181da36`b1ee129e
00000000`3ec533c0 a7663792`a404f891 11d4a391`6b30c738
00000000`3ec533d0 4dc13f27`90003b9a 4d1ab443`18a031ab
00000000`3ec533e0 719f1e26`090cc0a5 11d26d3f`09576e91
00000000`3ec533f0 3b7269c9`a000398e 00000001`00000000
dt -b PROTOCOL_ENTRY 00000000`efdff020-8
+0x000 Signature : 0x65747270
+0x008 AllEntries : [ 00000000`efdffea0 - 3ec53380 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x018 ProtocolID :
+0x000 Data1 : 0x5b1b31a1
+0x004 Data2 : 0x9562
+0x006 Data3 : 0x11d2
+0x008 Data4 :
[00] 0x8e ''
[01] 0x3f '?'
[02] 0 ''
[03] 0xa0 ''
[04] 0xc9 ''
[05] 0x69 'i'
[06] 0x72 'r'
[07] 0x3b ';'
+0x028 Protocols : [ 00000000`efdfff38 - eeb430b8 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x038 Notify : [ 00000000`efdff050 - efdff050 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
da 00000000`efdff020-8
00000000`efdff018 "prte"
[ndb]!echo "Protocols -> All protocol interfaces"
Protocols -> All protocol interfaces
[ndb]!echo "Different offset: +0x020 ByProtocol : [ 00000000`ef358238 - efdff040 ]"
invalid command name "00000000`ef358238"
!echo "Different offset: +0x020 ByProtocol : [ 00000000`ef358238 - efdff040 ]"
No command echo found
dt -b PROTOCOL_INTERFACE 00000000`efdfff38-20
+0x000 Signature : 0x63666970
+0x008 Link : [ 00000000`efdfffb0 - efdfffb0 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x018 Handle : (null)
+0x020 ByProtocol : [ 00000000`ef358238 - efdff040 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x030 Protocol : (null)
+0x038 Interface : 0x00000000`3ec53900
+0x040 OpenList : [ 00000000`ef358b20 - ef358b20 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x050 OpenListCount : 1
da 00000000`efdfff38-20
00000000`efdfff18 "pifc"
dq 00000000`efdfff38-20+18 l1
00000000`efdfff30 00000000`efdfff98
da 00000000`efdfff98
00000000`efdfff98 "hndl"
dt -b IHANDLE 00000000`efdfff98
+0x000 Signature : 0x6c646e68
+0x008 AllHandles : [ 00000000`efdff1a0 - 3ec53488 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x018 Protocols : [ 00000000`efdfff20 - efdfff20 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x028 LocateRequest : 0x18d
+0x030 Key : 1
[ndb]!echo "To see what interface it is:dq 00000000`efdfff38-20+18 l1 00000000`efdfff30 00000000`efdfff98 da 00000000`efdfff98 00000000`efdfff98 "hndl" dt -b IHANDLE 00000000`efdfff98 +0x000 Signature : 0x6c646e68 +0x008 AllHandles : [ 00000000`efdff1a0 - 3ec53488 ] +0x000 ForwardLink : (null) +0x008 BackLink : (null) +0x018 Protocols : [ 00000000`efdfff20 - efdfff20 ] +0x000 ForwardLink : (null) +0x008 BackLink : (null) +0x028 LocateRequest : 0x18d +0x030 Key : 1"
invalid command name "00000000`efdff1a0"
!echo "To see what interface it is:dq 00000000`efdfff38-20+18 l1 00000000`efdfff30 00000000`efdfff98 da 00000000`efdfff98 00000000`efdfff98 "hndl" dt -b IHANDLE 00000000`efdfff98 +0x000 Signature : 0x6c646e68 +0x008 AllHandles : [ 00000000`efdff1a0 - 3ec53488 ] +0x000 ForwardLink : (null) +0x008 BackLink : (null) +0x018 Protocols : [ 00000000`efdfff20 - efdfff20 ] +0x000 ForwardLink : (null) +0x008 BackLink : (null) +0x028 LocateRequest : 0x18d +0x030 Key : 1"
Syntax error in extension cmd
dqs 0x00000000`3ec53900
00000000`3ec53900 00000000`00001000
00000000`3ec53908 00000000`00000000
00000000`3ec53910 00000000`effd0018
00000000`3ec53918 00000000`efde8998
00000000`3ec53920 00000000`ef358f18
00000000`3ec53928 00000000`00000000
00000000`3ec53930 00000000`00000000
00000000`3ec53938 00000000`00000000
00000000`3ec53940 00000000`3ec27000 DxeCore!SwitchStack.obj+0x3ec27000
00000000`3ec53948 00000000`0004a000
00000000`3ec53950 00000004`00000003
00000000`3ec53958 00000000`00000000
00000000`3ec53960 00000000`3ec27000 DxeCore!SwitchStack.obj+0x3ec27000
00000000`3ec53968 00000000`0000004a
00000000`3ec53970 00000000`00000000
00000000`3ec53978 00000000`00000004
da 00000000`effd0018
00000000`effd0018 "IBI SYSTF"
dqs 00000000`effd0018
00000000`effd0018 54535953`20494249
00000000`effd0020 00000078`00020046
00000000`effd0028 00000000`3b765e4a
00000000`effd0030 00000000`effde318
00000000`effd0038 00000000`00010000
00000000`effd0040 00000000`ef22a918
00000000`effd0048 00000000`eaa0e400 ConSplitterDxe!mConIn+0x10
00000000`effd0050 00000000`eeb43918
00000000`effd0058 00000000`eeb3b020
00000000`effd0060 00000000`ef228e98
00000000`effd0068 00000000`eaa0e190 ConSplitterDxe!mStdErr+0x10
00000000`effd0070 00000000`effdff18
00000000`effd0078 00000000`3ec531d8 DxeCore!mBootServices
00000000`effd0080 00000000`0000000d
00000000`effd0088 00000000`effdfb18

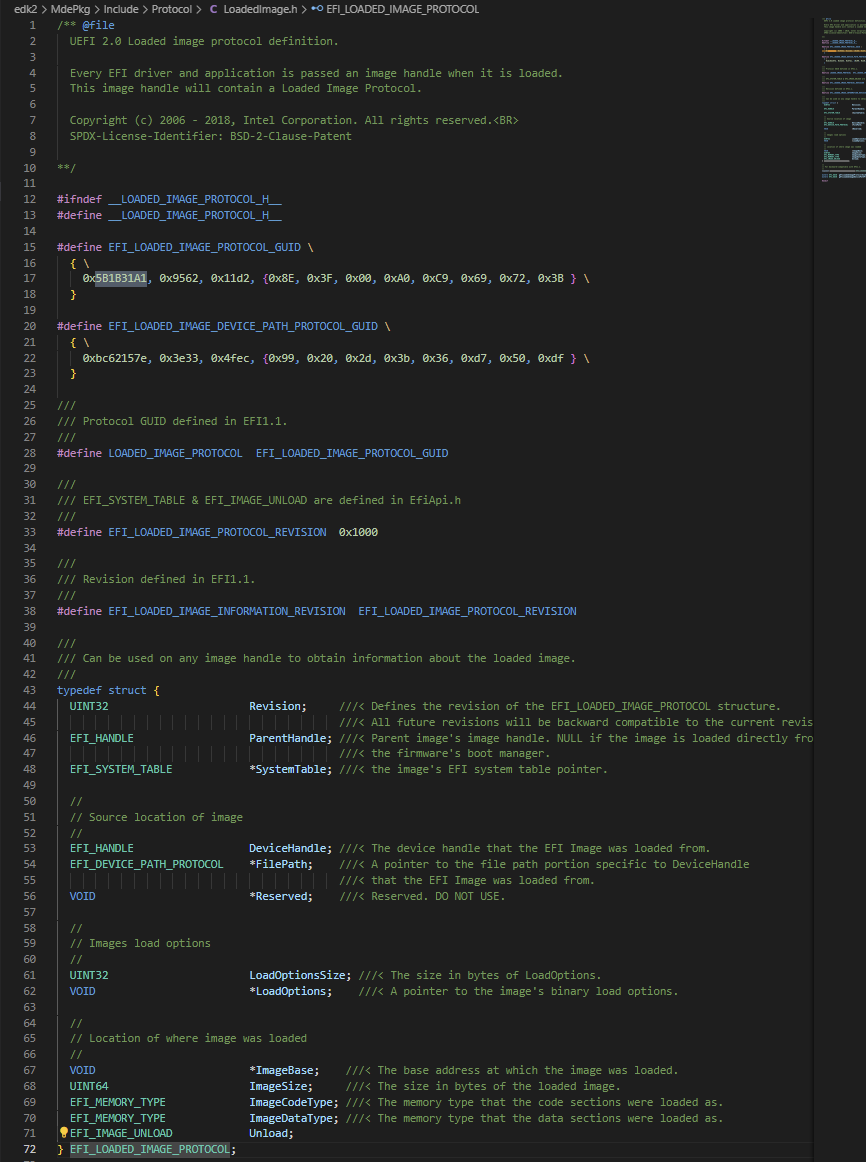

00000000`effd0090 afafafaf`6c617470interface 就是指向此EFI_LOADED_IMAGE_PROTOCOL:
2024.05.04
继续，串上PROTOCOL_NOTIFY与IEVENT
dt -b PROTOCOL_ENTRY 00000000`efdffea0-8
+0x000 Signature : 0x65747270
+0x008 AllEntries : [ 00000000`efdff9a0 - efdff020 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x018 ProtocolID :
+0x000 Data1 : 0x96f46153
+0x004 Data2 : 0x97a7
+0x006 Data3 : 0x4793
+0x008 Data4 :
[00] 0xac ''
[01] 0xc1 ''
[02] 0xfa ''
[03] 0x19 ''
[04] 0xbf ''
[05] 0x78 'x'
[06] 0xea ''
[07] 0x97 ''
+0x028 Protocols : [ 00000000`efdffec0 - efdffec0 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x038 Notify : [ 00000000`efdffc28 - efdffc28 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)

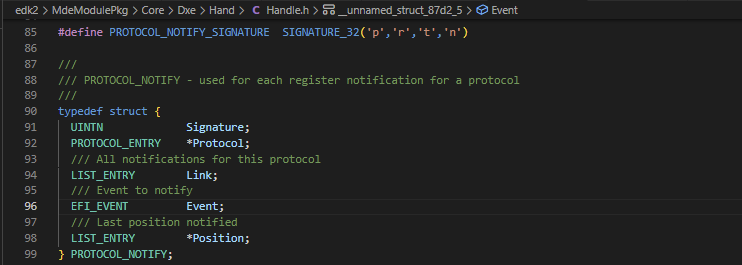

dt -b PROTOCOL_NOTIFY 00000000`efdffc28-10
+0x000 Signature : 0x6e747270
+0x008 Protocol : (null)
+0x010 Link : [ 00000000`efdffed0 - efdffed0 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x020 Event : 0x00000000`efdffb18
+0x028 Position : (null)
da 00000000`efdffc28-10
00000000`efdffc18 "prtn"

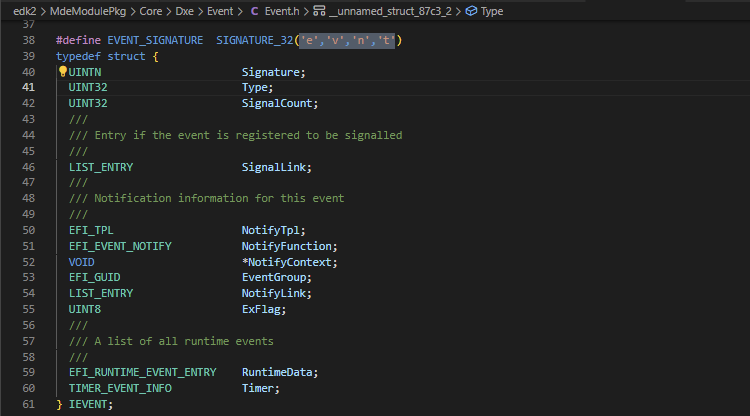

dt -b IEVENT 00000000`efdffb18
+0x000 Signature : 0x746e7665
+0x008 Type : 0x200
+0x00c SignalCount : 0
+0x010 SignalLink : [ 00000000`3ec540e0 - efdfe028 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x020 NotifyTpl : 8
+0x028 NotifyFunction : (null)
+0x030 NotifyContext : (null)
+0x038 EventGroup :
+0x000 Data1 : 0
+0x004 Data2 : 0
+0x006 Data3 : 0
+0x008 Data4 :
[00] 0 ''
[01] 0 ''
[02] 0 ''
[03] 0 ''
[04] 0 ''
[05] 0 ''
[06] 0 ''
[07] 0 ''
+0x048 NotifyLink : [ 00000000`00000000 - 0 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x058 ExFlag : 0x2 ''
+0x060 RuntimeData :
+0x000 Type : 0
+0x008 NotifyTpl : 0
+0x010 NotifyFunction : (null)
+0x018 NotifyContext
: (null)
+0x020 Event : (null)
+0x028 Link : [ 00000000`00000000 - 0 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x098 Timer :
+0x000 Link : [ 00000000`00000000 - 0 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x010 TriggerTime : 0
+0x018 Period : 0
da 00000000`efdffb18
00000000`efdffb18 "evnt"DxeCore!gIdleLoopEvent

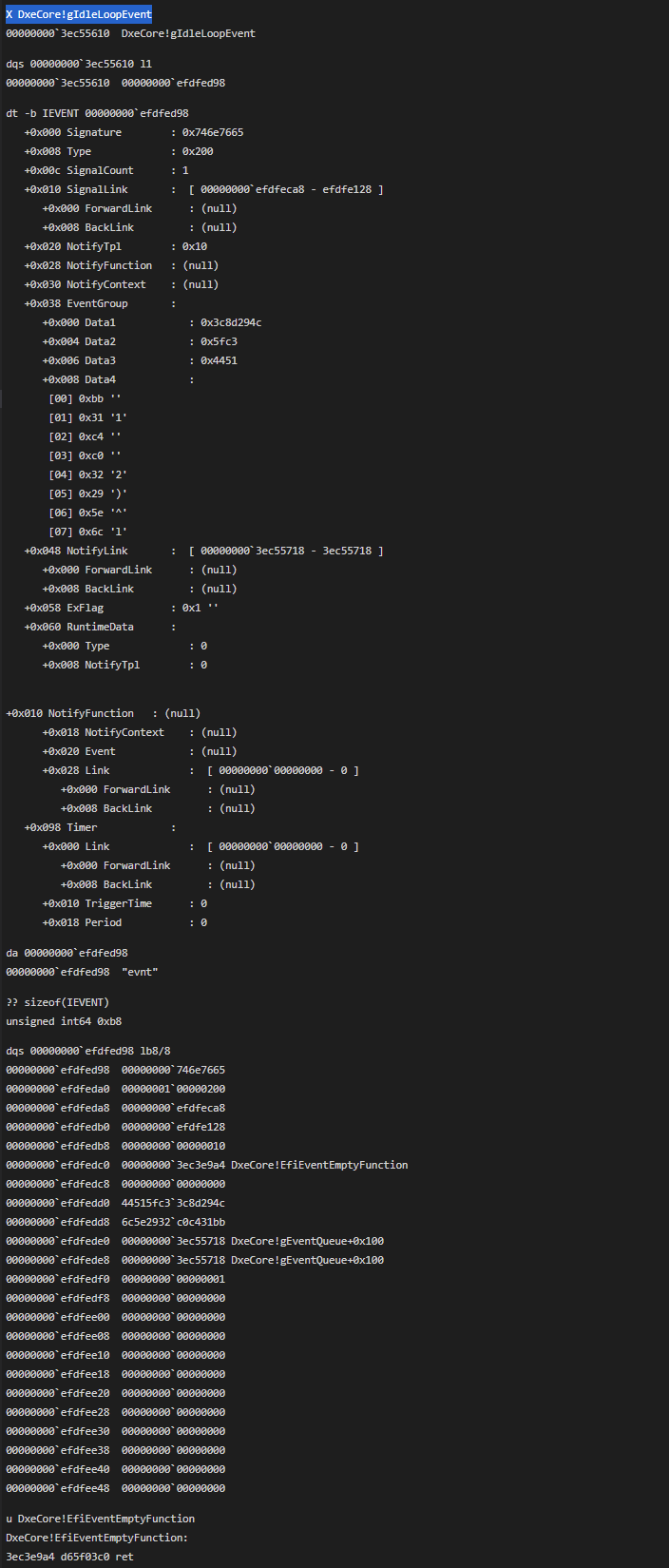

X DxeCore!gIdleLoopEvent
00000000`3ec55610 DxeCore!gIdleLoopEvent
dqs 00000000`3ec55610 l1
00000000`3ec55610 00000000`efdfed98
dt -b IEVENT 00000000`efdfed98
+0x000 Signature : 0x746e7665
+0x008 Type : 0x200
+0x00c SignalCount : 1
+0x010 SignalLink : [ 00000000`efdfeca8 - efdfe128 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x020 NotifyTpl : 0x10
+0x028 NotifyFunction : (null)
+0x030 NotifyContext : (null)
+0x038 EventGroup :
+0x000 Data1 : 0x3c8d294c
+0x004 Data2 : 0x5fc3
+0x006 Data3 : 0x4451
+0x008 Data4 :
[00] 0xbb ''
[01] 0x31 '1'
[02] 0xc4 ''
[03] 0xc0 ''
[04] 0x32 '2'
[05] 0x29 ')'
[06] 0x5e '^'
[07] 0x6c 'l'
+0x048 NotifyLink : [ 00000000`3ec55718 - 3ec55718 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x058 ExFlag : 0x1 ''
+0x060 RuntimeData :
+0x000 Type : 0
+0x008 NotifyTpl : 0
+0x010 NotifyFunction : (null)
+0x018 NotifyContext : (null)
+0x020 Event : (null)
+0x028 Link : [ 00000000`00000000 - 0 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x098 Timer :
+0x000 Link : [ 00000000`00000000 - 0 ]
+0x000 ForwardLink : (null)
+0x008 BackLink : (null)
+0x010 TriggerTime : 0
+0x018 Period : 0
da 00000000`efdfed98
00000000`efdfed98 "evnt"
?? sizeof(IEVENT)
unsigned int64 0xb8
dqs 00000000`efdfed98 lb8/8
00000000`efdfed98 00000000`746e7665
00000000`efdfeda0 00000001`00000200
00000000`efdfeda8 00000000`efdfeca8
00000000`efdfedb0 00000000`efdfe128
00000000`efdfedb8 00000000`00000010
00000000`efdfedc0 00000000`3ec3e9a4 DxeCore!EfiEventEmptyFunction
00000000`efdfedc8 00000000`00000000
00000000`efdfedd0 44515fc3`3c8d294c
00000000`efdfedd8 6c5e2932`c0c431bb
00000000`efdfede0 00000000`3ec55718 DxeCore!gEventQueue+0x100
00000000`efdfede8 00000000`3ec55718 DxeCore!gEventQueue+0x100
00000000`efdfedf0 00000000`00000001
00000000`efdfedf8 00000000`00000000
00000000`efdfee00 00000000`00000000
00000000`efdfee08 00000000`00000000
00000000`efdfee10 00000000`00000000
00000000`efdfee18 00000000`00000000
00000000`efdfee20 00000000`00000000
00000000`efdfee28 00000000`00000000
00000000`efdfee30 00000000`00000000
00000000`efdfee38 00000000`00000000
00000000`efdfee40 00000000`00000000
00000000`efdfee48 00000000`00000000
u DxeCore!EfiEventEmptyFunction
DxeCore!EfiEventEmptyFunction:
3ec3e9a4 d65f03c0 ret
DxeCore!PeCoffLoaderGetImageInfo:
3ec3e9a8 a9ba7bfd stp x29, x30, [sp, #-0x60]!
3ec3e9ac 910003fd mov x29, sp
3ec3e9b0 a90153f3 stp x19, x20, [sp, #0x10]
3ec3e9b4 aa0003f3 mov x19, x0
3ec3e9b8 d00000a0 adrp x0, #0x3ec54000
3ec3e9bc a9025bf5 stp x21, x22, [sp, #0x20]
3ec3e9c0 a90363f7 stp x23, x24, [sp, #0x30]作者：朱博渊 创建时间：2024-05-03 22:37
最后编辑：朱博渊 更新时间：2024-11-15 17:44
最后编辑：朱博渊 更新时间：2024-11-15 17:44
