Shell: acpiview
2024.05.04
Shell> help acpiview
Display ACPI Table information.
ACPIVIEW [[-?] | [[[[-l] | [-s AcpiTable [-d]]] [-q] [-h]] [-r Spec]]]
-l - Display list of installed ACPI Tables.
-s - Display only the specified AcpiTable type and only support single
invocation option.
AcpiTable : The required ACPI Table type.
-d - Generate a binary file dump of the specified AcpiTable.
-q - Quiet. Suppress errors and warnings. Disables consistency checks.
-h - Enable colour highlighting.
-r - Validate that all required ACPI tables are installed
Spec : Specification to validate against.
For Arm, the possible values are:
0 - Server Base Boot Requirements v1.0
1 - Server Base Boot Requirements v1.1
2 - Server Base Boot Requirements v1.2
-? - Show help.
This program is provided to allow examination of ACPI table values from the
UEFI Shell. This can help with investigations, especially at that stage
where the tables are not enabling an OS to boot.
The program is not exhaustive, and only encapsulates detailed knowledge of a
limited number of table types.
Default behaviour is to display the content of all tables installed.
'Known' table types (listed in NOTES below) will be parsed and displayed
with descriptions and field values. Where appropriate a degree of
consistency checking is done and errors may be reported in the output.
Other table types will be displayed as an array of Hexadecimal bytes.
To facilitate debugging, the -s and -d options can be used to generate a
binary file image of a table that can be copied elsewhere for investigation
using tools such as those provided by acpica.org. This is especially
relevant for AML type tables like DSDT and SSDT.
NOTES:
1. The AcpiTable parameter can match any installed table type.
Tables without specific handling will be displayed as a raw hex dump (or
dumped to a file if -d is used).
2. -s option supports to display the specified AcpiTable type that is present
in the system. For normal type AcpiTable, it would display the data of the
AcpiTable and AcpiTable header. The following type may contain header type
other than AcpiTable header. The actual header can refer to the ACPI spec
6.2
Extra A. Particular types:
AEST - Arm Error Source Table
APIC - Multiple APIC Description Table (MADT)
APMT - Arm Performance Monitoring Unit Table
BGRT - Boot Graphics Resource Table
DBG2 - Debug Port Table 2
DSDT - Differentiated System Description Table
FACP - Fixed ACPI Description Table (FADT)
GTDT - Generic Timer Description Table
HMAT - Heterogeneous Memory Attributes Table
IORT - IO Remapping Table
MCFG - Memory Mapped Config Space Base Address Description Table
PPTT - Processor Properties Topology Table
RSDP - Root System Description Pointer
SLIT - System Locality Information Table
SPCR - Serial Port Console Redirection Table
SRAT - System Resource Affinity Table
SSDT - Secondary SystemDescription Table
XSDT - Extended System Description Table
EXAMPLES:
* To display a list of the installed table types:
fs0:\> acpiview -l
* To parse and display a specific table type:
fs0:\> acpiview -s GTDT
* To save a binary dump of the contents of a table to a file
in the current working directory:
fs0:\> acpiview -s DSDT -d
* To display contents of all ACPI tables:
fs0:\> acpiview
* To check if all Server Base Boot Requirements (SBBR) v1.2 mandatory
ACPI tables are installed (Arm only):
fs0:\> acpiview -r 2

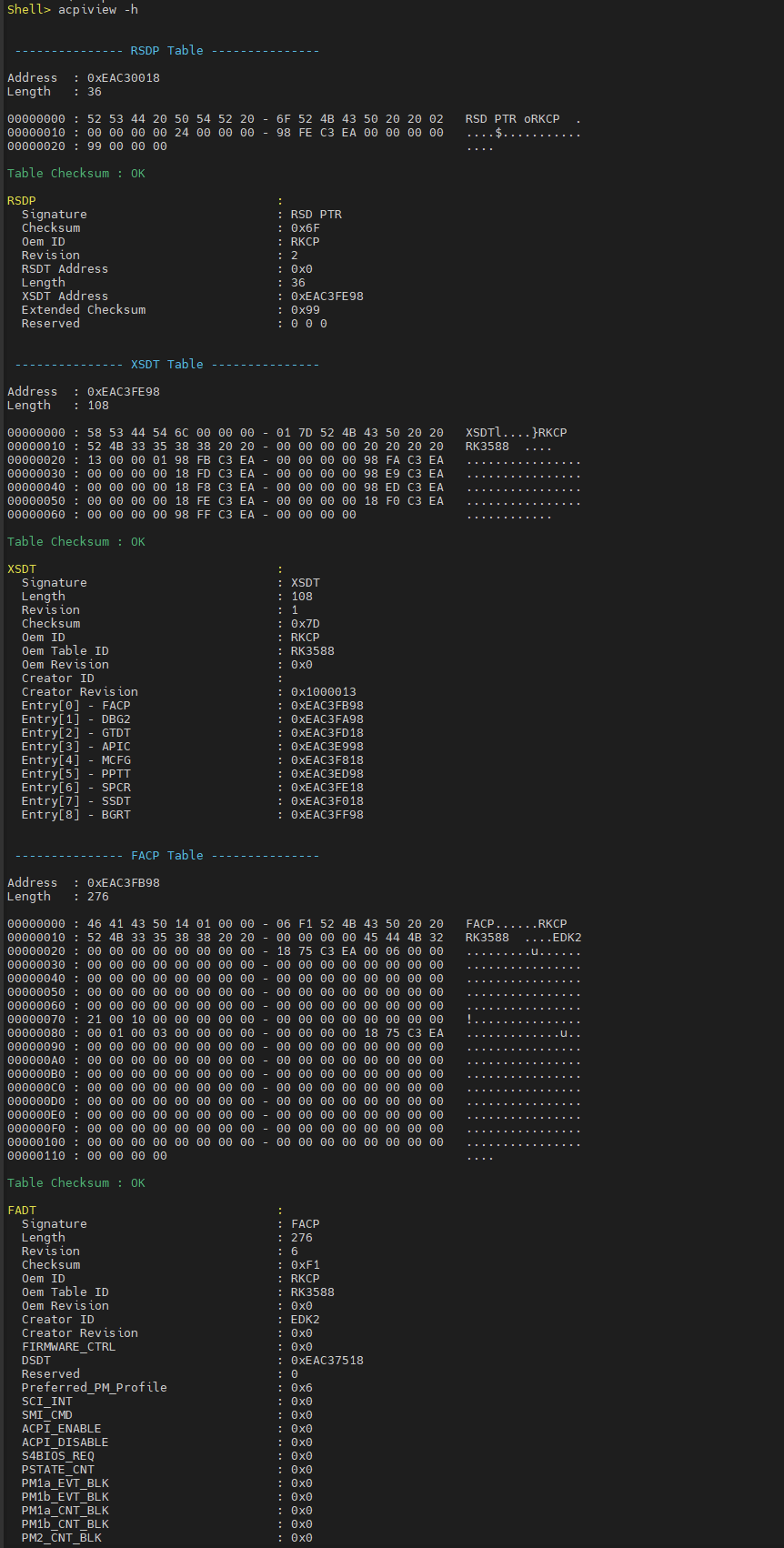

Shell> acpiview -h
--------------- RSDP Table ---------------
Address : 0xEAC30018
Length : 36
00000000 : 52 53 44 20 50 54 52 20 - 6F 52 4B 43 50 20 20 02 RSD PTR oRKCP .
00000010 : 00 00 00 00 24 00 00 00 - 98 FE C3 EA 00 00 00 00 ....$...........
00000020 : 99 00 00 00 ....
Table Checksum : OK
RSDP :
Signature : RSD PTR
Checksum : 0x6F
Oem ID : RKCP
Revision : 2
RSDT Address : 0x0
Length : 36
XSDT Address : 0xEAC3FE98
Extended Checksum : 0x99
Reserved : 0 0 0
--------------- XSDT Table ---------------
Address : 0xEAC3FE98
Length : 108
00000000 : 58 53 44 54 6C 00 00 00 - 01 7D 52 4B 43 50 20 20 XSDTl....}RKCP
00000010 : 52 4B 33 35 38 38 20 20 - 00 00 00 00 20 20 20 20 RK3588 ....
00000020 : 13 00 00 01 98 FB C3 EA - 00 00 00 00 98 FA C3 EA ................
00000030 : 00 00 00 00 18 FD C3 EA - 00 00 00 00 98 E9 C3 EA ................
00000040 : 00 00 00 00 18 F8 C3 EA - 00 00 00 00 98 ED C3 EA ................
00000050 : 00 00 00 00 18 FE C3 EA - 00 00 00 00 18 F0 C3 EA ................
00000060 : 00 00 00 00 98 FF C3 EA - 00 00 00 00 ............
Table Checksum : OK
XSDT :
Signature : XSDT
Length : 108
Revision : 1
Checksum : 0x7D
Oem ID : RKCP
Oem Table ID : RK3588
Oem Revision : 0x0
Creator ID :
Creator Revision : 0x1000013
Entry[0] - FACP : 0xEAC3FB98
Entry[1] - DBG2 : 0xEAC3FA98
Entry[2] - GTDT : 0xEAC3FD18
Entry[3] - APIC : 0xEAC3E998
Entry[4] - MCFG : 0xEAC3F818
Entry[5] - PPTT : 0xEAC3ED98
Entry[6] - SPCR : 0xEAC3FE18
Entry[7] - SSDT : 0xEAC3F018
Entry[8] - BGRT : 0xEAC3FF98
--------------- FACP Table ---------------
Address : 0xEAC3FB98
Length : 276
00000000 : 46 41 43 50 14 01 00 00 - 06 F1 52 4B 43 50 20 20 FACP......RKCP
00000010 : 52 4B 33 35 38 38 20 20 - 00 00 00 00 45 44 4B 32 RK3588 ....EDK2
00000020 : 00 00 00 00 00 00 00 00 - 18 75 C3 EA 00 06 00 00 .........u......
00000030 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000040 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000050 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000060 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000070 : 21 00 10 00 00 00 00 00 - 00 00 00 00 00 00 00 00 !...............
00000080 : 00 01 00 03 00 00 00 00 - 00 00 00 00 18 75 C3 EA .............u..
00000090 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
000000A0 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
000000B0 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
000000C0 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
000000D0 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
000000E0 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
000000F0 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000100 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000110 : 00 00 00 00 ....
Table Checksum : OK
FADT :
Signature : FACP
Length : 276
Revision : 6
Checksum : 0xF1
Oem ID : RKCP
Oem Table ID : RK3588
Oem Revision : 0x0
Creator ID : EDK2
Creator Revision : 0x0
FIRMWARE_CTRL : 0x0
DSDT : 0xEAC37518
Reserved : 0
Preferred_PM_Profile : 0x6
SCI_INT : 0x0
SMI_CMD : 0x0
ACPI_ENABLE : 0x0
ACPI_DISABLE : 0x0
S4BIOS_REQ : 0x0
PSTATE_CNT : 0x0
PM1a_EVT_BLK : 0x0
PM1b_EVT_BLK : 0x0
PM1a_CNT_BLK : 0x0
PM1b_CNT_BLK : 0x0
PM2_CNT_BLK : 0x0
PM_TMR_BLK : 0x0
GPE0_BLK : 0x0
GPE1_BLK : 0x0
PM1_EVT_LEN : 0x0
PM1_CNT_LEN : 0x0
PM2_CNT_LEN : 0x0
PM_TMR_LEN : 0x0
GPE0_BLK_LEN : 0x0
GPE1_BLK_LEN : 0x0
GPE1_BASE : 0x0
CST_CNT : 0x0
P_LVL2_LAT : 0x0
P_LVL3_LAT : 0x0
FLUSH_SIZE : 0x0
FLUSH_STRIDE : 0x0
DUTY_OFFSET : 0x0
DUTY_WIDTH : 0x0
DAY_ALRM : 0x0
MON_ALRM : 0x0
CENTURY : 0x0
IAPC_BOOT_ARCH : 0x0
Reserved : 0x0
Flags : 0x100021
WBINVD : 1
WBINVD_FLUSH : 0
PROC_C1 : 0
P_LVL2_UP : 0
PWR_BUTTON : 0
SLP_BUTTON : 1
FIX_RTC : 0
RTC_S4 : 0
TMR_VAL_EXT : 0
DCK_CAP : 0
RESET_REG_SUP : 0
SEALED_CASE : 0
HEADLESS : 0
CPU_SW_SLP : 0
PCI_EXP_WAK : 0
USE_PLATFORM_CLOCK : 0
S4_RTC_STS_VALID : 0
REMOTE_POWER_ON_CAPABLE : 0
FORCE_APIC_CLUSTER_MODEL : 0
FORCE_APIC_PHYSICAL_DESTINATION_MODE : 0
HW_REDUCED_ACPI : 1
LOW_POWER_S0_IDLE_CAPABLE : 0
Reserved : 0
RESET_REG :
Address Space ID : 0x0
Register Bit Width : 0x0
Register Bit Offset : 0x0
Access Size : 0x0
Address : 0x0
RESET_VALUE : 0x0
ARM_BOOT_ARCH : 0x1
FADT Minor Version : 0x3
X_FIRMWARE_CTRL : 0x0
X_DSDT : 0xEAC37518
X_PM1a_EVT_BLK :
Address Space ID : 0x0
Register Bit Width : 0x0
Register Bit Offset : 0x0
Access Size : 0x0
Address : 0x0
X_PM1b_EVT_BLK :
Address Space ID : 0x0
Register Bit Width : 0x0
Register Bit Offset : 0x0
Access Size : 0x0
Address : 0x0
X_PM1a_CNT_BLK :
Address Space ID : 0x0
Register Bit Width : 0x0
Register Bit Offset : 0x0
Access Size : 0x0
Address : 0x0
X_PM1b_CNT_BLK :
Address Space ID : 0x0
Register Bit Width : 0x0
Register Bit Offset : 0x0
Access Size : 0x0
Address : 0x0
X_PM2_CNT_BLK :
Address Space ID : 0x0
Register Bit Width : 0x0
Register Bit Offset : 0x0
Access Size : 0x0
Address : 0x0
X_PM_TMR_BLK :
Address Space ID : 0x0
Register Bit Width : 0x0
Register Bit Offset : 0x0
Access Size : 0x0
Address : 0x0
X_GPE0_BLK :
Address Space ID : 0x0
Register Bit Width : 0x0
Register Bit Offset : 0x0
Access Size : 0x0
Address : 0x0
X_GPE1_BLK :
Address Space ID : 0x0
Register Bit Width : 0x0
Register Bit Offset : 0x0
Access Size : 0x0
Address : 0x0
SLEEP_CONTROL_REG :
Address Space ID : 0x0
Register Bit Width : 0x0
Register Bit Offset : 0x0
Access Size : 0x0
Address : 0x0
SLEEP_STATUS_REG :
Address Space ID : 0x0
Register Bit Width : 0x0
Register Bit Offset : 0x0
Access Size : 0x0
Address : 0x0
Hypervisor VendorIdentity : 0
Summary:
FADT Version : 6.3
--------------- DSDT Table ---------------
Address : 0xEAC37518
Length : 3038
00000000 : 44 53 44 54 DE 0B 00 00 - 02 46 52 4B 43 50 20 20 DSDT.....FRKCP
00000010 : 52 4B 33 35 38 38 20 20 - 02 00 00 00 49 4E 54 4C RK3588 ....INTL
00000020 : 25 09 20 20 10 49 BB 5F - 53 42 5F 08 50 53 55 42 %. .I._SB_.PSUB
00000030 : 0D 47 44 59 4C 38 58 32 - 30 32 33 00 5B 82 44 1D .GDYL8X2023.[.D.
00000040 : 50 4B 47 30 08 5F 48 49 - 44 0D 41 43 50 49 30 30 PKG0._HID.ACPI00
00000050 : 31 30 00 08 5F 55 49 44 - 0A 08 14 09 5F 53 54 41 10.._UID...._STA
00000060 : 00 A4 0A 0F 5B 82 40 0C - 43 4C 55 30 08 5F 48 49 ....[.@.CLU0._HI
00000070 : 44 0D 41 43 50 49 30 30 - 31 30 00 08 5F 55 49 44 D.ACPI0010.._UID
00000080 : 0A 09 14 09 5F 53 54 41 - 00 A4 0A 0F 5B 82 24 43 ...._STA....[.$C
00000090 : 50 55 30 08 5F 48 49 44 - 0D 41 43 50 49 30 30 30 PU0._HID.ACPI000
000000A0 : 37 00 08 5F 55 49 44 00 - 14 09 5F 53 54 41 00 A4 7.._UID..._STA..
000000B0 : 0A 0F 5B 82 24 43 50 55 - 31 08 5F 48 49 44 0D 41 ..[.$CPU1._HID.A
000000C0 : 43 50 49 30 30 30 37 00 - 08 5F 55 49 44 01 14 09 CPI0007.._UID...
000000D0 : 5F 53 54 41 00 A4 0A 0F - 5B 82 25 43 50 55 32 08 _STA....[.%CPU2.
000000E0 : 5F 48 49 44 0D 41 43 50 - 49 30 30 30 37 00 08 5F _HID.ACPI0007.._
000000F0 : 55 49 44 0A 02 14 09 5F - 53 54 41 00 A4 0A 0F 5B UID...._STA....[
00000100 : 82 25 43 50 55 33 08 5F - 48 49 44 0D 41 43 50 49 .%CPU3._HID.ACPI
00000110 : 30 30 30 37 00 08 5F 55 - 49 44 0A 03 14 09 5F 53 0007.._UID...._S
00000120 : 54 41 00 A4 0A 0F 5B 82 - 44 07 43 4C 55 31 08 5F TA....[.D.CLU1._
00000130 : 48 49 44 0D 41 43 50 49 - 30 30 31 30 00 08 5F 55 HID.ACPI0010.._U
00000140 : 49 44 0A 0A 14 09 5F 53 - 54 41 00 A4 0A 0F 5B 82 ID...._STA....[.
00000150 : 25 43 50 55 34 08 5F 48 - 49 44 0D 41 43 50 49 30 %CPU4._HID.ACPI0
00000160 : 30 30 37 00 08 5F 55 49 - 44 0A 04 14 09 5F 53 54 007.._UID...._ST
00000170 : 41 00 A4 0A 0F 5B 82 25 - 43 50 55 35 08 5F 48 49 A....[.%CPU5._HI
00000180 : 44 0D 41 43 50 49 30 30 - 30 37 00 08 5F 55 49 44 D.ACPI0007.._UID
00000190 : 0A 05 14 09 5F 53 54 41 - 00 A4 0A 0F 5B 82 44 07 ...._STA....[.D.
000001A0 : 43 4C 55 32 08 5F 48 49 - 44 0D 41 43 50 49 30 30 CLU2._HID.ACPI00
000001B0 : 31 30 00 08 5F 55 49 44 - 0A 0B 14 09 5F 53 54 41 10.._UID...._STA
000001C0 : 00 A4 0A 0F 5B 82 25 43 - 50 55 36 08 5F 48 49 44 ....[.%CPU6._HID
000001D0 : 0D 41 43 50 49 30 30 30 - 37 00 08 5F 55 49 44 0A .ACPI0007.._UID.
000001E0 : 06 14 09 5F 53 54 41 00 - A4 0A 0F 5B 82 25 43 50 ..._STA....[.%CP
000001F0 : 55 37 08 5F 48 49 44 0D - 41 43 50 49 30 30 30 37 U7._HID.ACPI0007
00000200 : 00 08 5F 55 49 44 0A 07 - 14 09 5F 53 54 41 00 A4 .._UID...._STA..
00000210 : 0A 0F 5B 82 4F 27 53 44 - 43 33 08 5F 48 49 44 0D ..[.O'SDC3._HID.
00000220 : 52 4B 43 50 30 44 34 30 - 00 08 5F 55 49 44 0A 03 RKCP0D40.._UID..
00000230 : 08 5F 43 43 41 00 14 2B - 5F 43 52 53 08 08 52 42 ._CCA..+_CRS..RB
00000240 : 55 46 11 1A 0A 17 86 09 - 00 01 00 00 2E FE 00 00 UF..............
00000250 : 01 00 89 06 00 01 01 ED - 00 00 00 79 00 A4 52 42 ...........y..RB
00000260 : 55 46 08 5F 44 53 44 12 - 48 0C 02 11 13 0A 10 14 UF._DSD.H.......
00000270 : D8 FF DA BA 6E 8C 4D 8A - 91 BC 9B BF 4A A3 01 12 ....n.M.....J...
00000280 : 40 0B 08 12 27 02 0D 63 - 6F 6D 70 61 74 69 62 6C @...'..compatibl
00000290 : 65 00 0D 72 6F 63 6B 63 - 68 69 70 2C 72 6B 33 35 e..rockchip,rk35
000002A0 : 38 38 2D 64 77 63 6D 73 - 68 63 00 12 16 02 0D 6D 88-dwcmshc.....m
000002B0 : 61 78 2D 66 72 65 71 75 - 65 6E 63 79 00 0C 00 C2 ax-frequency....
000002C0 : EB 0B 12 0F 02 0D 62 75 - 73 2D 77 69 64 74 68 00 ......bus-width.
000002D0 : 0A 08 12 0A 02 0D 6E 6F - 2D 73 64 00 01 12 0C 02 ......no-sd.....
000002E0 : 0D 6E 6F 2D 73 64 69 6F - 00 01 12 13 02 0D 6D 6D .no-sdio......mm
000002F0 : 63 2D 68 73 34 30 30 2D - 31 5F 38 76 00 01 12 1E c-hs400-1_8v....
00000300 : 02 0D 6D 6D 63 2D 68 73 - 34 30 30 2D 65 6E 68 61 ..mmc-hs400-enha
00000310 : 6E 63 65 64 2D 73 74 72 - 6F 62 65 00 01 12 12 02 nced-strobe.....
00000320 : 0D 6E 6F 6E 2D 72 65 6D - 6F 76 61 62 6C 65 00 01 .non-removable..
00000330 : 5B 80 45 4D 4D 43 00 0C - 34 04 7C FD 0A 04 5B 81 [.EMMC..4.|...[.
00000340 : 0B 45 4D 4D 43 43 50 4C - 4C 45 20 14 41 0F 5F 44 .EMMCCPLLE .A._D
00000350 : 53 4D 0C 08 5F 54 5F 30 - 00 A0 41 0E 93 68 11 13 SM.._T_0..A..h..
00000360 : 0A 10 B0 DD 4A 43 F3 8F - D5 49 A7 24 95 84 4B 79 ....JC...I.$..Ky
00000370 : AD 1F A2 48 0C 01 70 99 - 6A 00 5F 54 5F 30 A0 0A ...H..p.j._T_0..
00000380 : 93 5F 54 5F 30 00 A4 0A - 03 A1 40 0B A0 4D 0A 93 ._T_0.....@..M..
00000390 : 5F 54 5F 30 01 70 83 88 - 6B 00 00 60 A0 19 92 95 _T_0.p..k..`....
000003A0 : 60 0C 00 C2 EB 0B 70 0C - 00 05 00 FF 50 4C 4C 45 `.....p.....PLLE
000003B0 : A4 0C 00 C2 EB 0B A0 19 - 92 95 60 0C 80 D1 F0 08 ..........`.....
000003C0 : 70 0C 00 07 00 FF 50 4C - 4C 45 A4 0C 80 D1 F0 08 p.....PLLE......
000003D0 : A0 19 92 95 60 0C 00 E1 - F5 05 70 0C 00 0B 00 FF ....`.....p.....
000003E0 : 50 4C 4C 45 A4 0C 00 E1 - F5 05 A0 19 92 95 60 0C PLLE..........`.
000003F0 : 80 F0 FA 02 70 0C 00 17 - 00 FF 50 4C 4C 45 A4 0C ....p.....PLLE..
00000400 : 80 F0 FA 02 A0 19 92 95 - 60 0C 00 36 6E 01 70 0C ........`..6n.p.
00000410 : 00 80 00 FF 50 4C 4C 45 - A4 0C 00 36 6E 01 A0 19 ....PLLE...6n...
00000420 : 92 95 60 0C D8 B8 05 00 - 70 0C 00 BF 00 FF 50 4C ..`.....p.....PL
00000430 : 4C 45 A4 0C D8 B8 05 00 - A4 00 A5 A4 00 14 3C 53 LE............<S
00000440 : 43 4C 4B 09 A0 13 92 94 - 68 0C 80 1A 06 00 70 0C CLK.....h.....p.
00000450 : 00 BF 00 FF 50 4C 4C 45 - A1 21 A0 13 92 94 68 0C ....PLLE.!....h.
00000460 : 80 F0 FA 02 70 0C 00 80 - 00 FF 50 4C 4C 45 A1 0B ....p.....PLLE..
00000470 : 70 0C 00 06 00 FF 50 4C - 4C 45 5B 82 17 53 44 4D p.....PLLE[..SDM
00000480 : 4D 14 08 5F 41 44 52 00 - A4 00 14 08 5F 52 4D 56 M.._ADR....._RMV
00000490 : 00 A4 00 5B 82 4F 06 53 - 44 48 43 08 5F 48 49 44 ...[.O.SDHC._HID
000004A0 : 0D 52 4B 43 50 46 45 32 - 43 00 08 5F 55 49 44 01 .RKCPFE2C.._UID.
000004B0 : 08 5F 43 43 41 00 08 5F - 53 31 44 01 08 5F 53 32 ._CCA.._S1D.._S2
000004C0 : 44 01 08 5F 53 33 44 01 - 08 5F 53 34 44 01 14 09 D.._S3D.._S4D...
000004D0 : 5F 53 54 41 00 A4 0A 0F - 14 2B 5F 43 52 53 08 08 _STA.....+_CRS..
000004E0 : 52 42 55 46 11 1A 0A 17 - 86 09 00 01 00 00 2C FE RBUF..........,.
000004F0 : 00 40 00 00 89 06 00 01 - 01 EB 00 00 00 79 00 A4 .@...........y..
00000500 : 52 42 55 46 5B 82 42 09 - 47 50 49 30 08 5F 48 49 RBUF[.B.GPI0._HI
00000510 : 44 0D 50 52 50 30 30 30 - 31 00 08 5F 55 49 44 00 D.PRP0001.._UID.
00000520 : 08 5F 44 53 44 12 3C 02 - 11 13 0A 10 14 D8 FF DA ._DSD.<.........
00000530 : BA 6E 8C 4D 8A 91 BC 9B - BF 4A A3 01 12 25 01 12 .n.M.....J...%..
00000540 : 22 02 0D 63 6F 6D 70 61 - 74 69 62 6C 65 00 0D 72 "..compatible..r
00000550 : 6F 63 6B 63 68 69 70 2C - 67 70 69 6F 2D 62 61 6E ockchip,gpio-ban
00000560 : 6B 00 14 2B 5F 43 52 53 - 00 08 52 42 55 46 11 1A k..+_CRS..RBUF..
00000570 : 0A 17 86 09 00 01 00 00 - 8A FD 00 01 00 00 89 06 ................
00000580 : 00 09 01 35 01 00 00 79 - 00 A4 52 42 55 46 14 09 ...5...y..RBUF..
00000590 : 5F 53 54 41 00 A4 0A 0F - 5B 82 42 09 47 50 49 31 _STA....[.B.GPI1
000005A0 : 08 5F 48 49 44 0D 50 52 - 50 30 30 30 31 00 08 5F ._HID.PRP0001.._
000005B0 : 55 49 44 01 08 5F 44 53 - 44 12 3C 02 11 13 0A 10 UID.._DSD.<.....
000005C0 : 14 D8 FF DA BA 6E 8C 4D - 8A 91 BC 9B BF 4A A3 01 .....n.M.....J..
000005D0 : 12 25 01 12 22 02 0D 63 - 6F 6D 70 61 74 69 62 6C .%.."..compatibl
000005E0 : 65 00 0D 72 6F 63 6B 63 - 68 69 70 2C 67 70 69 6F e..rockchip,gpio
000005F0 : 2D 62 61 6E 6B 00 14 2B - 5F 43 52 53 00 08 52 42 -bank..+_CRS..RB
00000600 : 55 46 11 1A 0A 17 86 09 - 00 01 00 00 C2 FE 00 01 UF..............
00000610 : 00 00 89 06 00 09 01 36 - 01 00 00 79 00 A4 52 42 .......6...y..RB
00000620 : 55 46 14 09 5F 53 54 41 - 00 A4 0A 0F 5B 82 43 09 UF.._STA....[.C.
00000630 : 47 50 49 32 08 5F 48 49 - 44 0D 50 52 50 30 30 30 GPI2._HID.PRP000
00000640 : 31 00 08 5F 55 49 44 0A - 02 08 5F 44 53 44 12 3C 1.._UID..._DSD.<
00000650 : 02 11 13 0A 10 14 D8 FF - DA BA 6E 8C 4D 8A 91 BC ..........n.M...
00000660 : 9B BF 4A A3 01 12 25 01 - 12 22 02 0D 63 6F 6D 70 ..J...%.."..comp
00000670 : 61 74 69 62 6C 65 00 0D - 72 6F 63 6B 63 68 69 70 atible..rockchip
00000680 : 2C 67 70 69 6F 2D 62 61 - 6E 6B 00 14 2B 5F 43 52 ,gpio-bank..+_CR
00000690 : 53 00 08 52 42 55 46 11 - 1A 0A 17 86 09 00 01 00 S..RBUF.........
000006A0 : 00 C3 FE 00 01 00 00 89 - 06 00 09 01 37 01 00 00 ............7...
000006B0 : 79 00 A4 52 42 55 46 14 - 09 5F 53 54 41 00 A4 0A y..RBUF.._STA...
000006C0 : 0F 5B 82 43 09 47 50 49 - 33 08 5F 48 49 44 0D 50 .[.C.GPI3._HID.P
000006D0 : 52 50 30 30 30 31 00 08 - 5F 55 49 44 0A 03 08 5F RP0001.._UID..._
000006E0 : 44 53 44 12 3C 02 11 13 - 0A 10 14 D8 FF DA BA 6E DSD.<..........n
000006F0 : 8C 4D 8A 91 BC 9B BF 4A - A3 01 12 25 01 12 22 02 .M.....J...%..".
00000700 : 0D 63 6F 6D 70 61 74 69 - 62 6C 65 00 0D 72 6F 63 .compatible..roc
00000710 : 6B 63 68 69 70 2C 67 70 - 69 6F 2D 62 61 6E 6B 00 kchip,gpio-bank.
00000720 : 14 2B 5F 43 52 53 00 08 - 52 42 55 46 11 1A 0A 17 .+_CRS..RBUF....
00000730 : 86 09 00 01 00 00 C4 FE - 00 01 00 00 89 06 00 09 ................
00000740 : 01 38 01 00 00 79 00 A4 - 52 42 55 46 14 09 5F 53 .8...y..RBUF.._S
00000750 : 54 41 00 A4 0A 0F 5B 82 - 43 09 47 50 49 34 08 5F TA....[.C.GPI4._
00000760 : 48 49 44 0D 50 52 50 30 - 30 30 31 00 08 5F 55 49 HID.PRP0001.._UI
00000770 : 44 0A 04 08 5F 44 53 44 - 12 3C 02 11 13 0A 10 14 D..._DSD.<......
00000780 : D8 FF DA BA 6E 8C 4D 8A - 91 BC 9B BF 4A A3 01 12 ....n.M.....J...
00000790 : 25 01 12 22 02 0D 63 6F - 6D 70 61 74 69 62 6C 65 %.."..compatible
000007A0 : 00 0D 72 6F 63 6B 63 68 - 69 70 2C 67 70 69 6F 2D ..rockchip,gpio-
000007B0 : 62 61 6E 6B 00 14 2B 5F - 43 52 53 00 08 52 42 55 bank..+_CRS..RBU
000007C0 : 46 11 1A 0A 17 86 09 00 - 01 00 00 C5 FE 00 01 00 F...............
000007D0 : 00 89 06 00 09 01 39 01 - 00 00 79 00 A4 52 42 55 ......9...y..RBU
000007E0 : 46 14 09 5F 53 54 41 00 - A4 0A 0F 5B 82 40 09 50 F.._STA....[.@.P
000007F0 : 49 4E 43 08 5F 48 49 44 - 0D 50 52 50 30 30 30 31 INC._HID.PRP0001
00000800 : 00 08 5F 55 49 44 0A 04 - 08 5F 44 53 44 12 42 04 .._UID..._DSD.B.
00000810 : 02 11 13 0A 10 14 D8 FF - DA BA 6E 8C 4D 8A 91 BC ..........n.M...
00000820 : 9B BF 4A A3 01 12 2A 01 - 12 27 02 0D 63 6F 6D 70 ..J...*..'..comp
00000830 : 61 74 69 62 6C 65 00 0D - 72 6F 63 6B 63 68 69 70 atible..rockchip
00000840 : 2C 72 6B 33 35 38 38 2D - 70 69 6E 63 74 72 6C 00 ,rk3588-pinctrl.
00000850 : 14 22 5F 43 52 53 00 08 - 52 42 55 46 11 11 0A 0E ."_CRS..RBUF....
00000860 : 86 09 00 01 00 00 5F FD - 00 00 01 00 79 00 A4 52 ......_.....y..R
00000870 : 42 55 46 14 09 5F 53 54 - 41 00 A4 0A 0F 5B 82 42 BUF.._STA....[.B
00000880 : 14 49 32 43 32 08 5F 48 - 49 44 0D 50 52 50 30 30 .I2C2._HID.PRP00
00000890 : 30 31 00 08 5F 55 49 44 - 0A 02 08 5F 43 43 41 00 01.._UID..._CCA.
000008A0 : 14 2B 5F 43 52 53 08 08 - 52 42 55 46 11 1A 0A 17 .+_CRS..RBUF....
000008B0 : 86 09 00 01 00 00 AA FE - 00 10 00 00 89 06 00 01 ................
000008C0 : 01 5F 01 00 00 79 00 A4 - 52 42 55 46 08 5F 44 53 ._...y..RBUF._DS
000008D0 : 44 12 4A 07 02 11 13 0A - 10 14 D8 FF DA BA 6E 8C D.J...........n.
000008E0 : 4D 8A 91 BC 9B BF 4A A3 - 01 12 42 06 04 12 15 02 M.....J...B.....
000008F0 : 0D 69 32 63 2C 63 6C 6B - 2D 72 61 74 65 00 0C 80 .i2c,clk-rate...
00000900 : 3D CD 0B 12 23 02 0D 63 - 6F 6D 70 61 74 69 62 6C =...#..compatibl
00000910 : 65 00 0D 72 6F 63 6B 63 - 68 69 70 2C 72 6B 33 33 e..rockchip,rk33
00000920 : 39 39 2D 69 32 63 00 12 - 13 02 0D 23 61 64 64 72 99-i2c.....#addr
00000930 : 65 73 73 2D 63 65 6C 6C - 73 00 01 12 10 02 0D 23 ess-cells......#
00000940 : 73 69 7A 65 2D 63 65 6C - 6C 73 00 00 5B 80 49 32 size-cells..[.I2
00000950 : 50 43 00 0C 28 08 7C FD - 0A 04 5B 81 0B 49 32 50 PC..(.|...[..I2P
00000960 : 43 53 43 47 31 30 20 5B - 80 49 32 53 43 00 0C 2C CSCG10 [.I2SC..,
00000970 : 08 7C FD 0A 04 5B 81 0B - 49 32 53 43 53 43 47 31 .|...[..I2SCSCG1
00000980 : 31 20 14 1A 5F 50 53 33 - 00 70 0C 00 02 00 02 43 1 .._PS3.p.....C
00000990 : 47 31 30 70 0C 02 00 02 - 00 43 47 31 31 14 1A 5F G10p.....CG11.._
000009A0 : 50 53 30 00 70 0C 00 00 - 00 02 43 47 31 30 70 0C PS0.p.....CG10p.
000009B0 : 00 00 02 00 43 47 31 31 - 14 08 5F 50 53 43 00 A4 ....CG11.._PSC..
000009C0 : 01 5B 82 42 0A 43 4F 4D - 32 08 5F 48 49 44 0D 41 .[.B.COM2._HID.A
000009D0 : 52 4D 48 30 30 31 31 00 - 08 5F 55 49 44 0A 02 08 RMH0011.._UID...
000009E0 : 5F 43 52 53 11 1A 0A 17 - 86 09 00 01 00 00 B5 FE _CRS............
000009F0 : 00 10 00 00 89 06 00 01 - 01 6D 01 00 00 79 00 08 .........m...y..
00000A00 : 5F 44 53 44 12 46 05 02 - 11 13 0A 10 14 D8 FF DA _DSD.F..........
00000A10 : BA 6E 8C 4D 8A 91 BC 9B - BF 4A A3 01 12 3E 03 12 .n.M.....J...>..
00000A20 : 0F 02 0D 72 65 67 2D 73 - 68 69 66 74 00 0A 02 12 ...reg-shift....
00000A30 : 12 02 0D 72 65 67 2D 69 - 6F 2D 77 69 64 74 68 00 ...reg-io-width.
00000A40 : 0A 04 12 18 02 0D 63 6C - 6F 63 6B 2D 66 72 65 71 ......clock-freq
00000A50 : 75 65 6E 63 79 00 0C 00 - 36 6E 01 14 09 5F 53 54 uency...6n..._ST
00000A60 : 41 00 A4 0A 0F 5B 82 4C - 04 58 48 43 30 08 5F 48 A....[.L.XHC0._H
00000A70 : 49 44 0D 50 4E 50 30 44 - 31 30 00 08 5F 55 49 44 ID.PNP0D10.._UID
00000A80 : 00 08 5F 43 43 41 00 14 - 2B 5F 43 52 53 08 08 52 .._CCA..+_CRS..R
00000A90 : 42 55 46 11 1A 0A 17 86 - 09 00 01 00 00 00 FC 00 BUF.............
00000AA0 : 00 40 00 89 06 00 01 01 - FC 00 00 00 79 00 A4 52 .@..........y..R
00000AB0 : 42 55 46 5B 82 4C 04 58 - 48 43 31 08 5F 48 49 44 BUF[.L.XHC1._HID
00000AC0 : 0D 50 4E 50 30 44 31 30 - 00 08 5F 55 49 44 01 08 .PNP0D10.._UID..
00000AD0 : 5F 43 43 41 00 14 2B 5F - 43 52 53 08 08 52 42 55 _CCA..+_CRS..RBU
00000AE0 : 46 11 1A 0A 17 86 09 00 - 01 00 00 40 FC 00 00 40 F..........@...@
00000AF0 : 00 89 06 00 01 01 FD 00 - 00 00 79 00 A4 52 42 55 ..........y..RBU
00000B00 : 46 5B 82 4D 04 58 48 43 - 32 08 5F 48 49 44 0D 50 F[.M.XHC2._HID.P
00000B10 : 4E 50 30 44 31 30 00 08 - 5F 55 49 44 0A 02 08 5F NP0D10.._UID..._
00000B20 : 43 43 41 00 14 2B 5F 43 - 52 53 08 08 52 42 55 46 CCA..+_CRS..RBUF
00000B30 : 11 1A 0A 17 86 09 00 01 - 00 00 D0 FC 00 00 40 00 ..............@.
00000B40 : 89 06 00 01 01 FE 00 00 - 00 79 00 A4 52 42 55 46 .........y..RBUF
00000B50 : 5B 82 4C 08 47 45 57 55 - 08 5F 48 49 44 0D 47 45 [.L.GEWU._HID.GE
00000B60 : 57 55 32 30 32 33 00 08 - 5F 55 49 44 00 08 5F 41 WU2023.._UID.._A
00000B70 : 44 52 00 14 40 06 5F 43 - 52 53 00 08 52 42 55 46 DR..@._CRS..RBUF
00000B80 : 11 4E 04 0A 4A 8C 21 00 - 01 01 01 00 00 00 01 00 .N..J.!.........
00000B90 : 00 00 00 17 00 00 19 00 - 23 00 01 00 0D 00 5C 5F ........#.....\_
00000BA0 : 53 42 2E 47 50 49 34 00 - 01 8C 21 00 01 01 01 00 SB.GPI4...!.....
00000BB0 : 00 00 01 00 00 00 00 17 - 00 00 19 00 23 00 01 00 ............#...
00000BC0 : 18 00 5C 5F 53 42 2E 47 - 50 49 30 00 01 79 00 A4 ..\_SB.GPI0..y..
00000BD0 : 52 42 55 46 14 09 5F 53 - 54 41 00 A4 0A 0F RBUF.._STA....
Table Checksum : OK
ACPI Table Header :
Signature : DSDT
Length : 3038
Revision : 2
Checksum : 0x46
Oem ID : RKCP
Oem Table ID : RK3588
Oem Revision : 0x2
Creator ID : INTL
Creator Revision : 0x20200925
--------------- DBG2 Table ---------------
Address : 0xEAC3FA98
Length : 92
00000000 : 44 42 47 32 5C 00 00 00 - 00 A4 52 4B 43 50 20 20 DBG2\.....RKCP
00000010 : 52 4B 33 35 38 38 20 20 - 00 00 00 00 45 44 4B 32 RK3588 ....EDK2
00000020 : 00 00 00 00 2C 00 00 00 - 01 00 00 00 00 30 00 01 ....,........0..
00000030 : 0A 00 26 00 00 00 00 00 - 00 80 12 00 00 00 16 00 ..&.............
00000040 : 22 00 00 20 00 03 00 00 - B5 FE 00 00 00 00 00 10 ".. ............
00000050 : 00 00 5C 5F 53 42 2E 55 - 41 52 32 00 ..\_SB.UAR2.
Table Checksum : OK
DBG2 :
Signature : DBG2
Length : 92
Revision : 0
Checksum : 0xA4
Oem ID : RKCP
Oem Table ID : RK3588
Oem Revision : 0x0
Creator ID : EDK2
Creator Revision : 0x0
OffsetDbgDeviceInfo : 0x2C
NumberDbgDeviceInfo : 1
Debug Device Info :
Revision : 0x0
Length : 48
Generic Address Registers Count : 0x1
NameSpace String Length : 10
NameSpace String Offset : 0x26
OEM Data Length : 0
OEM Data Offset : 0x0
Port Type : 0x8000
Port SubType : 0x12
Reserved : 0
Base Address Register Offset : 0x16
Address Size Offset : 0x22
BaseAddressRegister :
Address Space ID : 0x0
Register Bit Width : 0x20
Register Bit Offset : 0x0
Access Size : 0x3
Address : 0xFEB50000
Address Size : 0x1000
NameSpace String : \_SB.UAR2
--------------- GTDT Table ---------------
Address : 0xEAC3FD18
Length : 96
00000000 : 47 54 44 54 60 00 00 00 - 02 D8 52 4B 43 50 20 20 GTDT`.....RKCP
00000010 : 52 4B 33 35 38 38 20 20 - 00 00 00 00 45 44 4B 32 RK3588 ....EDK2
00000020 : 00 00 00 00 FF FF FF FF - FF FF FF FF 00 00 00 00 ................
00000030 : 1D 00 00 00 02 00 00 00 - 1E 00 00 00 02 00 00 00 ................
00000040 : 1B 00 00 00 02 00 00 00 - 1A 00 00 00 02 00 00 00 ................
00000050 : FF FF FF FF FF FF FF FF - 00 00 00 00 00 00 00 00 ................
Table Checksum : OK
GTDT :
Signature : GTDT
Length : 96
Revision : 2
Checksum : 0xD8
Oem ID : RKCP
Oem Table ID : RK3588
Oem Revision : 0x0
Creator ID : EDK2
Creator Revision : 0x0
CntControlBase Physical Address : 0xFFFFFFFFFFFFFFFF
Reserved : 0x0
Secure EL1 timer GSIV : 0x1D
Secure EL1 timer FLAGS : 0x2
Non-Secure EL1 timer GSIV : 0x1E
Non-Secure EL1 timer FLAGS : 0x2
Virtual timer GSIV : 0x1B
Virtual timer FLAGS : 0x2
Non-Secure EL2 timer GSIV : 0x1A
Non-Secure EL2 timer FLAGS : 0x2
CntReadBase Physical address : 0xFFFFFFFFFFFFFFFF
Platform Timer Count : 0
Platform Timer Offset : 0x0
--------------- APIC Table ---------------
Address : 0xEAC3E998
Length : 724
00000000 : 41 50 49 43 D4 02 00 00 - 04 29 52 4B 43 50 20 20 APIC.....)RKCP
00000010 : 52 4B 33 35 38 38 20 20 - 00 00 00 00 45 44 4B 32 RK3588 ....EDK2
00000020 : 00 00 00 00 00 00 00 00 - 00 00 00 00 0B 50 00 00 .............P..
00000030 : 00 00 00 00 00 00 00 00 - 01 00 00 00 00 00 00 00 ................
00000040 : 17 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000050 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000060 : 00 00 00 00 19 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000070 : 00 00 00 00 00 00 00 00 - 00 00 00 00 0B 50 00 00 .............P..
00000080 : 00 00 00 00 01 00 00 00 - 01 00 00 00 00 00 00 00 ................
00000090 : 17 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
000000A0 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
000000B0 : 00 00 00 00 19 00 00 00 - 00 00 00 00 00 00 00 00 ................
000000C0 : 00 01 00 00 00 00 00 00 - 00 00 00 00 0B 50 00 00 .............P..
000000D0 : 00 00 00 00 02 00 00 00 - 01 00 00 00 00 00 00 00 ................
000000E0 : 17 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
000000F0 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000100 : 00 00 00 00 19 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000110 : 00 02 00 00 00 00 00 00 - 00 00 00 00 0B 50 00 00 .............P..
00000120 : 00 00 00 00 03 00 00 00 - 01 00 00 00 00 00 00 00 ................
00000130 : 17 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000140 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000150 : 00 00 00 00 19 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000160 : 00 03 00 00 00 00 00 00 - 00 00 00 00 0B 50 00 00 .............P..
00000170 : 00 00 00 00 04 00 00 00 - 01 00 00 00 00 00 00 00 ................
00000180 : 17 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000190 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
000001A0 : 00 00 00 00 19 00 00 00 - 00 00 00 00 00 00 00 00 ................
000001B0 : 00 04 00 00 00 00 00 00 - 01 00 00 00 0B 50 00 00 .............P..
000001C0 : 00 00 00 00 05 00 00 00 - 01 00 00 00 00 00 00 00 ................
000001D0 : 17 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
000001E0 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
000001F0 : 00 00 00 00 19 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000200 : 00 05 00 00 00 00 00 00 - 01 00 00 00 0B 50 00 00 .............P..
00000210 : 00 00 00 00 06 00 00 00 - 01 00 00 00 00 00 00 00 ................
00000220 : 17 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000230 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000240 : 00 00 00 00 19 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000250 : 00 06 00 00 00 00 00 00 - 01 00 00 00 0B 50 00 00 .............P..
00000260 : 00 00 00 00 07 00 00 00 - 01 00 00 00 00 00 00 00 ................
00000270 : 17 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000280 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000290 : 00 00 00 00 19 00 00 00 - 00 00 00 00 00 00 00 00 ................
000002A0 : 00 07 00 00 00 00 00 00 - 01 00 00 00 0C 18 00 00 ................
000002B0 : 00 00 00 00 00 00 60 FE - 00 00 00 00 00 00 00 00 ......`.........
000002C0 : 03 00 00 00 0E 10 00 00 - 00 00 68 FE 00 00 00 00 ..........h.....
000002D0 : 00 00 10 00 ....
Table Checksum : OK
MADT :
Signature : APIC
Length : 724
Revision : 4
Checksum : 0x29
Oem ID : RKCP
Oem Table ID : RK3588
Oem Revision : 0x0
Creator ID : EDK2
Creator Revision : 0x0
Local Interrupt Controller Address : 0x0
Flags : 0x0
GICC :
Type : 0xB
Length : 80
Reserved : 0x0
CPU Interface Number : 0x0
ACPI Processor UID : 0x0
Flags : 0x1
Parking Protocol Version : 0x0
Performance Interrupt GSIV : 0x17
Parked Address : 0x0
Physical Base Address : 0x0
GICV : 0x0
GICH : 0x0
VGIC Maintenance interrupt : 0x19
GICR Base Address : 0x0
MPIDR : 0x0
Processor Power Efficiency Class : 0x0
Reserved : 0x0
SPE overflow Interrupt : 0x0
GICC :
Type : 0xB
Length : 80
Reserved : 0x0
CPU Interface Number : 0x0
ACPI Processor UID : 0x1
Flags : 0x1
Parking Protocol Version : 0x0
Performance Interrupt GSIV : 0x17
Parked Address : 0x0
Physical Base Address : 0x0
GICV : 0x0
GICH : 0x0
VGIC Maintenance interrupt : 0x19
GICR Base Address : 0x0
MPIDR : 0x100
Processor Power Efficiency Class : 0x0
Reserved : 0x0
SPE overflow Interrupt : 0x0
GICC :
Type : 0xB
Length : 80
Reserved : 0x0
CPU Interface Number : 0x0
ACPI Processor UID : 0x2
Flags : 0x1
Parking Protocol Version : 0x0
Performance Interrupt GSIV : 0x17
Parked Address : 0x0
Physical Base Address : 0x0
GICV : 0x0
GICH : 0x0
VGIC Maintenance interrupt : 0x19
GICR Base Address : 0x0
MPIDR : 0x200
Processor Power Efficiency Class : 0x0
Reserved : 0x0
SPE overflow Interrupt : 0x0
GICC :
Type : 0xB
Length : 80
Reserved : 0x0
CPU Interface Number : 0x0
ACPI Processor UID : 0x3
Flags : 0x1
Parking Protocol Version : 0x0
Performance Interrupt GSIV : 0x17
Parked Address : 0x0
Physical Base Address : 0x0
GICV : 0x0
GICH : 0x0
VGIC Maintenance interrupt : 0x19
GICR Base Address : 0x0
MPIDR : 0x300
Processor Power Efficiency Class : 0x0
Reserved : 0x0
SPE overflow Interrupt : 0x0
GICC :
Type : 0xB
Length : 80
Reserved : 0x0
CPU Interface Number : 0x0
ACPI Processor UID : 0x4
Flags : 0x1
Parking Protocol Version : 0x0
Performance Interrupt GSIV : 0x17
Parked Address : 0x0
Physical Base Address : 0x0
GICV : 0x0
GICH : 0x0
VGIC Maintenance interrupt : 0x19
GICR Base Address : 0x0
MPIDR : 0x400
Processor Power Efficiency Class : 0x1
Reserved : 0x0
SPE overflow Interrupt : 0x0
GICC :
Type : 0xB
Length : 80
Reserved : 0x0
CPU Interface Number : 0x0
ACPI Processor UID : 0x5
Flags : 0x1
Parking Protocol Version : 0x0
Performance Interrupt GSIV : 0x17
Parked Address : 0x0
Physical Base Address : 0x0
GICV : 0x0
GICH : 0x0
VGIC Maintenance interrupt : 0x19
GICR Base Address : 0x0
MPIDR : 0x500
Processor Power Efficiency Class : 0x1
Reserved : 0x0
SPE overflow Interrupt : 0x0
GICC :
Type : 0xB
Length : 80
Reserved : 0x0
CPU Interface Number : 0x0
ACPI Processor UID : 0x6
Flags : 0x1
Parking Protocol Version : 0x0
Performance Interrupt GSIV : 0x17
Parked Address : 0x0
Physical Base Address : 0x0
GICV : 0x0
GICH : 0x0
VGIC Maintenance interrupt : 0x19
GICR Base Address : 0x0
MPIDR : 0x600
Processor Power Efficiency Class : 0x1
Reserved : 0x0
SPE overflow Interrupt : 0x0
GICC :
Type : 0xB
Length : 80
Reserved : 0x0
CPU Interface Number : 0x0
ACPI Processor UID : 0x7
Flags : 0x1
Parking Protocol Version : 0x0
Performance Interrupt GSIV : 0x17
Parked Address : 0x0
Physical Base Address : 0x0
GICV : 0x0
GICH : 0x0
VGIC Maintenance interrupt : 0x19
GICR Base Address : 0x0
MPIDR : 0x700
Processor Power Efficiency Class : 0x1
Reserved : 0x0
SPE overflow Interrupt : 0x0
GICD :
Type : 0xC
Length : 24
Reserved : 0x0
GIC ID : 0x0
Physical Base Address : 0xFE600000
System Vector Base : 0x0
GIC Version : 3
Reserved : 0 0 0
GICR :
Type : 0xE
Length : 16
Reserved : 0x0
Discovery Range Base Address : 0xFE680000
Discovery Range Length : 0x100000
--------------- MCFG Table ---------------
Address : 0xEAC3F818
Length : 124
00000000 : 4D 43 46 47 7C 00 00 00 - 01 79 52 4B 43 50 20 20 MCFG|....yRKCP
00000010 : 52 4B 33 35 38 38 20 20 - 00 00 00 00 45 44 4B 32 RK3588 ....EDK2
00000020 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
00000030 : 09 00 00 00 00 00 01 01 - 00 00 00 00 00 80 00 40 ...............@
00000040 : 09 00 00 00 01 00 01 01 - 00 00 00 00 00 80 00 80 ................
00000050 : 09 00 00 00 02 00 01 01 - 00 00 00 00 00 80 00 C0 ................
00000060 : 09 00 00 00 03 00 01 01 - 00 00 00 00 00 80 00 00 ................
00000070 : 0A 00 00 00 04 00 01 01 - 00 00 00 00 ............
Table Checksum : OK
MCFG :
Signature : MCFG
Length : 124
Revision : 1
Checksum : 0x79
Oem ID : RKCP
Oem Table ID : RK3588
Oem Revision : 0x0
Creator ID : EDK2
Creator Revision : 0x0
Reserved : 0x0
PCI Configuration Space :
Base Address : 0x900000000
PCI Segment Group No. : 0x0
Start Bus No. : 0x1
End Bus No. : 0x1
Reserved : 0x0
PCI Configuration Space :
Base Address : 0x940008000
PCI Segment Group No. : 0x1
Start Bus No. : 0x1
End Bus No. : 0x1
Reserved : 0x0
PCI Configuration Space :
Base Address : 0x980008000
PCI Segment Group No. : 0x2
Start Bus No. : 0x1
End Bus No. : 0x1
Reserved : 0x0
PCI Configuration Space :
Base Address : 0x9C0008000
PCI Segment Group No. : 0x3
Start Bus No. : 0x1
End Bus No. : 0x1
Reserved : 0x0
PCI Configuration Space :
Base Address : 0xA00008000
PCI Segment Group No. : 0x4
Start Bus No. : 0x1
End Bus No. : 0x1
Reserved : 0x0
--------------- PPTT Table ---------------
Address : 0xEAC3ED98
Length : 544
00000000 : 50 50 54 54 20 02 00 00 - 01 05 52 4B 43 50 20 20 PPTT .....RKCP
00000010 : 52 4B 33 35 38 38 20 20 - 00 00 00 00 45 44 4B 32 RK3588 ....EDK2
00000020 : 00 00 00 00 00 18 00 00 - 03 00 00 00 00 00 00 00 ................
00000030 : 08 00 00 00 01 00 00 00 - 78 01 00 00 00 14 00 00 ........x.......
00000040 : 02 00 00 00 24 00 00 00 - 09 00 00 00 00 00 00 00 ....$...........
00000050 : 00 14 00 00 02 00 00 00 - 24 00 00 00 0A 00 00 00 ........$.......
00000060 : 00 00 00 00 00 14 00 00 - 02 00 00 00 24 00 00 00 ............$...
00000070 : 0B 00 00 00 00 00 00 00 - 00 20 00 00 02 00 00 00 ......... ......
00000080 : 3C 00 00 00 00 00 00 00 - 03 00 00 00 90 01 00 00 <...............
00000090 : A8 01 00 00 C0 01 00 00 - 00 20 00 00 02 00 00 00 ......... ......
000000A0 : 3C 00 00 00 01 00 00 00 - 03 00 00 00 90 01 00 00 <...............
000000B0 : A8 01 00 00 C0 01 00 00 - 00 20 00 00 02 00 00 00 ......... ......
000000C0 : 3C 00 00 00 02 00 00 00 - 03 00 00 00 90 01 00 00 <...............
000000D0 : A8 01 00 00 C0 01 00 00 - 00 20 00 00 02 00 00 00 ......... ......
000000E0 : 3C 00 00 00 03 00 00 00 - 03 00 00 00 90 01 00 00 <...............
000000F0 : A8 01 00 00 C0 01 00 00 - 00 20 00 00 02 00 00 00 ......... ......
00000100 : 50 00 00 00 04 00 00 00 - 03 00 00 00 D8 01 00 00 P...............
00000110 : F0 01 00 00 08 02 00 00 - 00 20 00 00 02 00 00 00 ......... ......
00000120 : 50 00 00 00 05 00 00 00 - 03 00 00 00 D8 01 00 00 P...............
00000130 : F0 01 00 00 08 02 00 00 - 00 20 00 00 02 00 00 00 ......... ......
00000140 : 64 00 00 00 06 00 00 00 - 03 00 00 00 D8 01 00 00 d...............
00000150 : F0 01 00 00 08 02 00 00 - 00 20 00 00 02 00 00 00 ......... ......
00000160 : 64 00 00 00 07 00 00 00 - 03 00 00 00 D8 01 00 00 d...............
00000170 : F0 01 00 00 08 02 00 00 - 01 18 00 00 7F 00 00 00 ................
00000180 : 00 00 00 00 00 00 30 00 - 00 10 00 00 0C 0A 40 00 ......0.......@.
00000190 : 01 18 00 00 7F 00 00 00 - C0 01 00 00 00 80 00 00 ................
000001A0 : 80 00 00 00 04 02 40 00 - 01 18 00 00 7F 00 00 00 ......@.........
000001B0 : C0 01 00 00 00 80 00 00 - 80 00 00 00 04 04 40 00 ..............@.
000001C0 : 01 18 00 00 7F 00 00 00 - 00 00 00 00 00 00 02 00 ................
000001D0 : 00 02 00 00 04 0A 40 00 - 01 18 00 00 7F 00 00 00 ......@.........
000001E0 : 08 02 00 00 00 00 01 00 - 00 01 00 00 04 02 40 00 ..............@.
000001F0 : 01 18 00 00 7F 00 00 00 - 08 02 00 00 00 00 01 00 ................
00000200 : 00 01 00 00 04 04 40 00 - 01 18 00 00 7F 00 00 00 ......@.........
00000210 : 00 00 00 00 00 00 08 00 - 00 04 00 00 08 0A 40 00 ..............@.
Table Checksum : OK
PPTT :
Signature : PPTT
Length : 544
Revision : 1
Checksum : 0x5
Oem ID : RKCP
Oem Table ID : RK3588
Oem Revision : 0x0
Creator ID : EDK2
Creator Revision : 0x0
* Structure Offset * : 0x24
Processor Hierarchy Node Structure :
Type : 0x0
Length : 24
Reserved : 0x0
Flags : 0x3
Parent : 0x0
ACPI Processor ID : 0x8
Number of private resources : 1
Private resources [0] : 0x178
* Structure Offset * : 0x3C
Processor Hierarchy Node Structure :
Type : 0x0
Length : 20
Reserved : 0x0
Flags : 0x2
Parent : 0x24
ACPI Processor ID : 0x9
Number of private resources : 0
* Structure Offset * : 0x50
Processor Hierarchy Node Structure :
Type : 0x0
Length : 20
Reserved : 0x0
Flags : 0x2
Parent : 0x24
ACPI Processor ID : 0xA
Number of private resources : 0
* Structure Offset * : 0x64
Processor Hierarchy Node Structure :
Type : 0x0
Length : 20
Reserved : 0x0
Flags : 0x2
Parent : 0x24
ACPI Processor ID : 0xB
Number of private resources : 0
* Structure Offset * : 0x78
Processor Hierarchy Node Structure :
Type : 0x0
Length : 32
Reserved : 0x0
Flags : 0x2
Parent : 0x3C
ACPI Processor ID : 0x0
Number of private resources : 3
Private resources [0] : 0x190
Private resources [1] : 0x1A8
Private resources [2] : 0x1C0
* Structure Offset * : 0x98
Processor Hierarchy Node Structure :
Type : 0x0
Length : 32
Reserved : 0x0
Flags : 0x2
Parent : 0x3C
ACPI Processor ID : 0x1
Number of private resources : 3
Private resources [0] : 0x190
Private resources [1] : 0x1A8
Private resources [2] : 0x1C0
* Structure Offset * : 0xB8
Processor Hierarchy Node Structure :
Type : 0x0
Length : 32
Reserved : 0x0
Flags : 0x2
Parent : 0x3C
ACPI Processor ID : 0x2
Number of private resources : 3
Private resources [0] : 0x190
Private resources [1] : 0x1A8
Private resources [2] : 0x1C0
* Structure Offset * : 0xD8
Processor Hierarchy Node Structure :
Type : 0x0
Length : 32
Reserved : 0x0
Flags : 0x2
Parent : 0x3C
ACPI Processor ID : 0x3
Number of private resources : 3
Private resources [0] : 0x190
Private resources [1] : 0x1A8
Private resources [2] : 0x1C0
* Structure Offset * : 0xF8
Processor Hierarchy Node Structure :
Type : 0x0
Length : 32
Reserved : 0x0
Flags : 0x2
Parent : 0x50
ACPI Processor ID : 0x4
Number of private resources : 3
Private resources [0] : 0x1D8
Private resources [1] : 0x1F0
Private resources [2] : 0x208
* Structure Offset * : 0x118
Processor Hierarchy Node Structure :
Type : 0x0
Length : 32
Reserved : 0x0
Flags : 0x2
Parent : 0x50
ACPI Processor ID : 0x5
Number of private resources : 3
Private resources [0] : 0x1D8
Private resources [1] : 0x1F0
Private resources [2] : 0x208
* Structure Offset * : 0x138
Processor Hierarchy Node Structure :
Type : 0x0
Length : 32
Reserved : 0x0
Flags : 0x2
Parent : 0x64
ACPI Processor ID : 0x6
Number of private resources : 3
Private resources [0] : 0x1D8
Private resources [1] : 0x1F0
Private resources [2] : 0x208
* Structure Offset * : 0x158
Processor Hierarchy Node Structure :
Type : 0x0
Length : 32
Reserved : 0x0
Flags : 0x2
Parent : 0x64
ACPI Processor ID : 0x7
Number of private resources : 3
Private resources [0] : 0x1D8
Private resources [1] : 0x1F0
Private resources [2] : 0x208
* Structure Offset * : 0x178
Cache Type Structure :
Type : 0x1
Length : 24
Reserved : 0x0
Flags : 0x7F
Next Level of Cache : 0x0
Size : 0x300000
Number of sets : 4096
Associativity : 12
Attributes : 0xA
Line size : 64
* Structure Offset * : 0x190
Cache Type Structure :
Type : 0x1
Length : 24
Reserved : 0x0
Flags : 0x7F
Next Level of Cache : 0x1C0
Size : 0x8000
Number of sets : 128
Associativity : 4
Attributes : 0x2
Line size : 64
* Structure Offset * : 0x1A8
Cache Type Structure :
Type : 0x1
Length : 24
Reserved : 0x0
Flags : 0x7F
Next Level of Cache : 0x1C0
Size : 0x8000
Number of sets : 128
Associativity : 4
Attributes : 0x4
Line size : 64
* Structure Offset * : 0x1C0
Cache Type Structure :
Type : 0x1
Length : 24
Reserved : 0x0
Flags : 0x7F
Next Level of Cache : 0x0
Size : 0x20000
Number of sets : 512
Associativity : 4
Attributes : 0xA
Line size : 64
* Structure Offset * : 0x1D8
Cache Type Structure :
Type : 0x1
Length : 24
Reserved : 0x0
Flags : 0x7F
Next Level of Cache : 0x208
Size : 0x10000
Number of sets : 256
Associativity : 4
Attributes : 0x2
Line size : 64
* Structure Offset * : 0x1F0
Cache Type Structure :
Type : 0x1
Length : 24
Reserved : 0x0
Flags : 0x7F
Next Level of Cache : 0x208
Size : 0x10000
Number of sets : 256
Associativity : 4
Attributes : 0x4
Line size : 64
* Structure Offset * : 0x208
Cache Type Structure :
Type : 0x1
Length : 24
Reserved : 0x0
Flags : 0x7F
Next Level of Cache : 0x0
Size : 0x80000
Number of sets : 1024
Associativity : 8
Attributes : 0xA
Line size : 64
--------------- SPCR Table ---------------
Address : 0xEAC3FE18
Length : 80
00000000 : 53 50 43 52 50 00 00 00 - 02 EE 52 4B 43 50 20 20 SPCRP.....RKCP
00000010 : 52 4B 33 35 38 38 20 20 - 00 00 00 00 45 44 4B 32 RK3588 ....EDK2
00000020 : 00 00 00 00 12 00 00 00 - 00 20 00 03 00 00 B5 FE ......... ......
00000030 : 00 00 00 00 08 00 6D 01 - 00 00 00 00 01 00 02 00 ......m.........
00000040 : FF FF FF FF 00 00 00 00 - 00 00 00 00 00 00 00 00 ................
Table Checksum : OK
SPCR :
Signature : SPCR
Length : 80
Revision : 2
Checksum : 0xEE
Oem ID : RKCP
Oem Table ID : RK3588
Oem Revision : 0x0
Creator ID : EDK2
Creator Revision : 0x0
Interface Type : 18
Reserved : 0 0 0
Base Address :
Address Space ID : 0x0
Register Bit Width : 0x20
Register Bit Offset : 0x0
Access Size : 0x3
Address : 0xFEB50000
Interrupt Type : 8
IRQ : 0
Global System Interrupt : 0x16D
Baud Rate : 0
Parity : 0
Stop Bits : 1
Flow Control : 0x0
Terminal Type : 2
Reserved : 0
PCI Device ID : 0xFFFF
PCI Vendor ID : 0xFFFF
PCI Bus Number : 0x0
PCI Device Number : 0x0
PCI Function Number : 0x0
PCI Flags : 0x0
PCI Segment : 0x0
Reserved : 0
--------------- SSDT Table ---------------
Address : 0xEAC3F018
Length : 617
00000000 : 53 53 44 54 69 02 00 00 - 05 15 52 4B 43 50 20 20 SSDTi.....RKCP
00000010 : 50 43 49 45 33 34 4C 30 - 02 00 00 00 49 4E 54 4C PCIE34L0....INTL
00000020 : 25 09 20 20 10 44 24 5C - 5F 53 42 5F 5B 82 4B 23 %. .D$\_SB_[.K#
00000030 : 50 43 49 30 08 5F 48 49 - 44 0D 50 4E 50 30 41 30 PCI0._HID.PNP0A0
00000040 : 38 00 08 5F 43 49 44 0D - 50 4E 50 30 41 30 33 00 8.._CID.PNP0A03.
00000050 : 08 5F 43 43 41 00 08 5F - 55 49 44 00 08 5F 53 45 ._CCA.._UID.._SE
00000060 : 47 00 08 5F 42 42 4E 01 - 08 5F 50 52 54 12 30 04 G.._BBN.._PRT.0.
00000070 : 12 0A 04 0B FF FF 00 00 - 0B 24 01 12 0A 04 0B FF .........$......
00000080 : FF 01 00 0B 24 01 12 0B - 04 0B FF FF 0A 02 00 0B ....$...........
00000090 : 24 01 12 0B 04 0B FF FF - 0A 03 00 0B 24 01 14 4E $...........$..N
000000A0 : 09 5F 43 52 53 08 08 52 - 42 55 46 11 4C 08 0A 88 ._CRS..RBUF.L...
000000B0 : 88 0D 00 02 0C 00 00 00 - 01 00 01 00 00 00 01 00 ................
000000C0 : 87 17 00 00 0C 01 00 00 - 00 00 00 00 00 F0 FF FF ................
000000D0 : FF F0 00 00 00 00 00 00 - 00 01 8A 2B 00 00 0C 01 ...........+....
000000E0 : 00 00 00 00 00 00 00 00 - 00 00 00 10 09 00 00 00 ................
000000F0 : FF FF FE 3F 09 00 00 00 - 00 00 00 00 00 00 00 00 ...?............
00000100 : 00 00 FF 2F 00 00 00 00 - 8A 2B 00 01 0C 03 00 00 .../.....+......
00000110 : 00 00 00 00 00 00 00 00 - 00 00 00 00 00 00 FF FF ................
00000120 : 00 00 00 00 00 00 00 00 - FF 3F 09 00 00 00 00 00 .........?......
00000130 : 01 00 00 00 00 00 79 00 - A4 52 42 55 46 5B 82 4C ......y..RBUF[.L
00000140 : 07 52 45 53 30 08 5F 48 - 49 44 0D 50 4E 50 30 43 .RES0._HID.PNP0C
00000150 : 30 32 00 08 5F 43 52 53 - 11 42 06 0A 5E 8A 2B 00 02.._CRS.B..^.+.
00000160 : 00 0C 01 00 00 00 00 00 - 00 00 00 00 00 00 00 09 ................
00000170 : 00 00 00 FF FF FF 0F 09 - 00 00 00 00 00 00 00 00 ................
00000180 : 00 00 00 00 00 00 10 00 - 00 00 00 8A 2B 00 00 0C ............+...
00000190 : 01 00 00 00 00 00 00 00 - 00 00 00 00 40 0A 00 00 ............@...
000001A0 : 00 FF FF 3F 40 0A 00 00 - 00 00 00 00 00 00 00 00 ...?@...........
000001B0 : 00 00 00 40 00 00 00 00 - 00 79 00 08 53 55 50 50 ...@.....y..SUPP
000001C0 : 00 08 43 54 52 4C 00 14 - 41 0A 5F 4F 53 43 04 A0 ..CTRL..A._OSC..
000001D0 : 4A 08 93 68 11 13 0A 10 - 5B 4D DB 33 F7 1F 1C 40 J..h....[M.3...@
000001E0 : 96 57 74 41 C0 3D D7 66 - 8A 6B 00 43 44 57 31 8A .WtA.=.f.k.CDW1.
000001F0 : 6B 0A 04 43 44 57 32 8A - 6B 0A 08 43 44 57 33 70 k..CDW2.k..CDW3p
00000200 : 43 44 57 32 53 55 50 50 - 70 43 44 57 33 43 54 52 CDW2SUPPpCDW3CTR
00000210 : 4C 7B 43 54 52 4C 0A 1E - 43 54 52 4C 7B 43 54 52 L{CTRL..CTRL{CTR
00000220 : 4C 0A 1D 43 54 52 4C A0 - 10 92 93 69 01 7D 43 44 L..CTRL....i.}CD
00000230 : 57 31 0A 08 43 44 57 31 - A0 16 92 93 43 44 57 33 W1..CDW1....CDW3
00000240 : 43 54 52 4C 7D 43 44 57 - 31 0A 10 43 44 57 31 70 CTRL}CDW1..CDW1p
00000250 : 43 54 52 4C 43 44 57 33 - A4 6B A1 0E 7D 43 44 57 CTRLCDW3.k..}CDW
00000260 : 31 0A 04 43 44 57 31 A4 - 6B 1..CDW1.k
Table Checksum : OK
ACPI Table Header :
Signature : SSDT
Length : 617
Revision : 5
Checksum : 0x15
Oem ID : RKCP
Oem Table ID : PCIE34L0
Oem Revision : 0x2
Creator ID : INTL
Creator Revision : 0x20200925
--------------- BGRT Table ---------------
Address : 0xEAC3FF98
Length : 56
00000000 : 42 47 52 54 38 00 00 00 - 01 25 49 4E 54 45 4C 20 BGRT8....%INTEL
00000010 : 45 44 4B 32 20 20 20 20 - 02 00 00 00 20 20 20 20 EDK2 ....
00000020 : 13 00 00 01 01 00 00 00 - 18 80 3D EE 00 00 00 00 ..........=.....
00000030 : B8 02 00 00 3C 01 00 00 ....<...
Table Checksum : OK
BGRT :
Signature : BGRT
Length : 56
Revision : 1
Checksum : 0x25
Oem ID : INTEL
Oem Table ID : EDK2
Oem Revision : 0x2
Creator ID :
Creator Revision : 0x1000013
Version : 0x1
Status : 0x0
Image Type : 0x0
Image Address : 0xEE3D8018
Image Offset X : 696
Image Offset Y : 316
Table Statistics:
0 Error(s)
0 Warning(s)
作者：朱博渊 创建时间：2024-05-04 16:51
最后编辑：朱博渊 更新时间：2024-12-20 17:01
最后编辑：朱博渊 更新时间：2024-12-20 17:01
